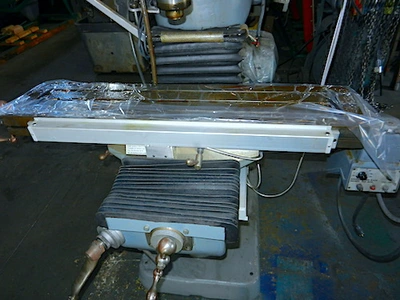

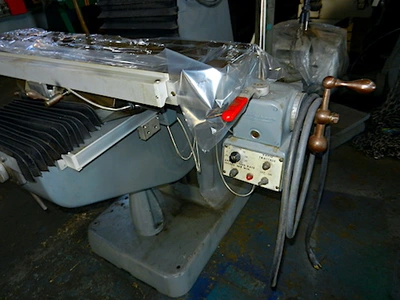

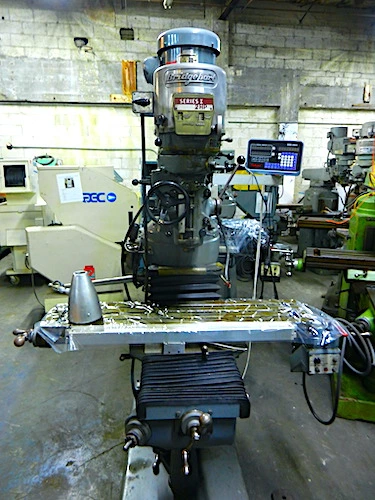

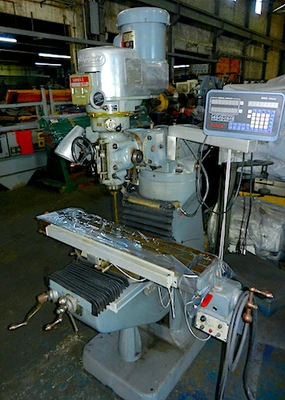

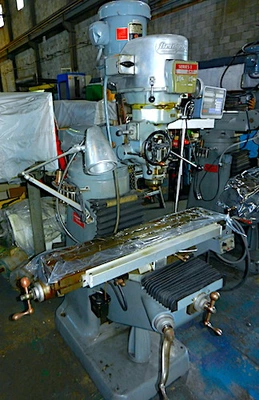

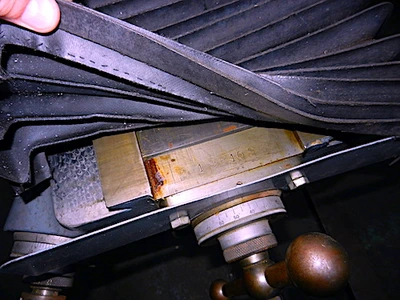

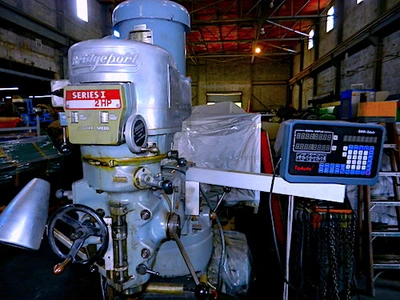

USED BRIDGEPORT SERIES 1

USED "BRIDGEPORT" VERTICAL MILLING MACHINE
MODEL SERIES 1 - SERIAL # 198109
TABLE SIZE 9" x 42"
SPINDLE DIAMETER 3-3/8"
SPINDLE TAPER R-8
LONG TRAVEL 30"
CROSS TRAVEL 12"
VERTICAL 16" (KNEE)
SPINDLE TRAVEL 5"
RAM TRAVEL 12"
DISTANCE FROM CENTER OF SPINDLE TO TABLE MIN. 6.75"
DISTANCE FROM CENTER OF SPINDLE TO TABLE MAX 18.75"
MOTOR 2 HP/230-460/3/60
SPEEDS INFINITELY VARIABLE FROM 60 TO 4,500 R.P.M.
SPINDLE POWER FEED .0015", .003" & .006"
HEAD TILTS 90° LEFT OR RIGHT & HEAD TILTS 45° FRONT OR BACK

EQUIPPED WITH:
2 AXIS DIGITAL READOUT
"BRIDGEPORT" POWERFEED
MISC. COLLETS
WORK LIGHT
CENTRAL LUBRICATION
