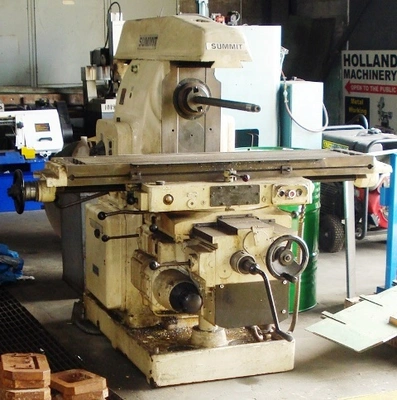

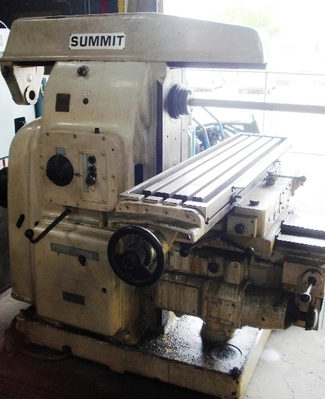

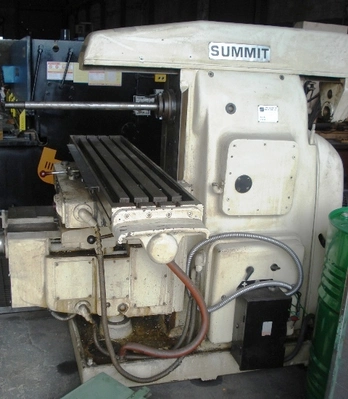

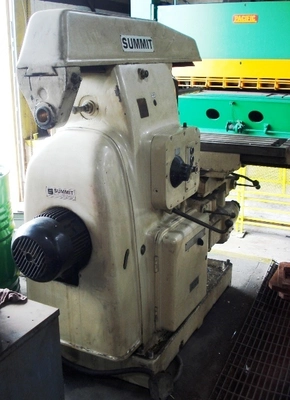

USED "SUMMIT" UNIVERSAL HORIZONTAL MILLING MACHINE
MODEL 3-UH
SERIAL #6163
YEAR MFG. 1973

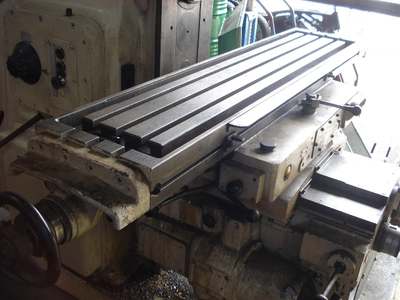

TABLE SIZE 12-3/4" x 60"
TABLE TILTS 45° LEFT OR RIGHT
TRAVELS:
LONGITUDINAL 35"
TRANSVERSAL 10"
VERTICAL 16-1/2"
MAX. DISTANCE UNDER THE ARBOR 17-11/16"
MIN. DISTANCE OVER THE MILL ARBOR 1-3/16"
SPINDLE TAPER #50
SPEEDS (18) FROM 30 TO 1500 RPM
AUTOMATIC FEEDS LONG FROM 1/2 TO 23-5/8 IPM
TRANSVERSAL FROM 3/32 TO 4-5/32 IPM
MAIN MOTOR 10 HP/220-440/3/60
FEED MOTOR 2 HP/220-440/3/60
DIMENSIONS 88" x 70" x 66"
WEIGHT 7,000 LBS. (APPROX)
EQUIPPED WITH: OVER ARM SUPPORT, ARBOR, VISE
