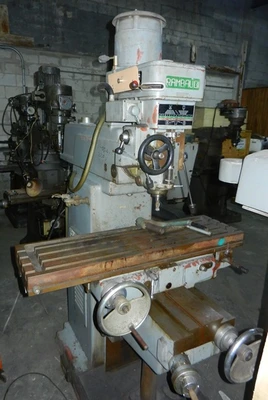

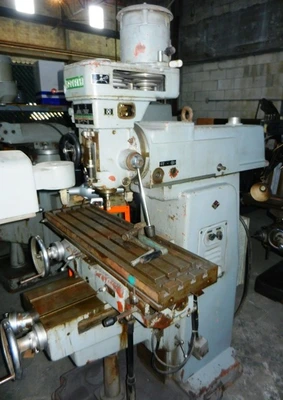

USED "RAMBAUDI" VERTICAL MILLING MACHINE
MODEL V2
TABLE SIZE 12" x 42"
SPINDLE DIAMETER 3-3/8"
SPINDLE TAPER R-8
LONG TRAVEL 29-1/2"
CROSS TRAVEL 12"
VERTICAL 16" (KNEE)
SPINDLE TRAVEL 5"
RAM TRAVEL 12"
DISTANCE FROM CENTER OF SPINDLE TO BODY MIN. 6" TO MAX. 22"
DISTANCE FROM NOSE TO TABLE 2-3/4" TO 19"
SPEEDS (16) FROM 75 TO 5,700 R.P.M.
SPINDLE POWER FEED .0015", .003" & .006"
HEAD TILTS 90° LEFT OR RIGHT
HEAD TILTS 45° FRONT OR BACK
MOTOR 3 HP/230-460/3/60
WEIGHT 3,200 LBS. (APPROX.)
