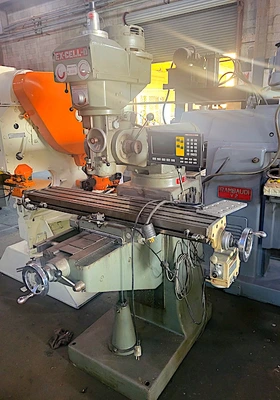

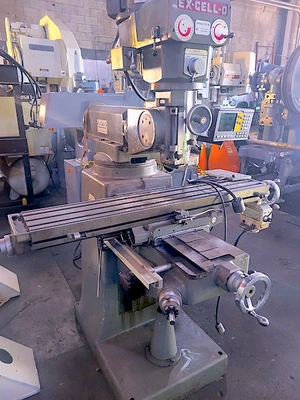

USED "EX-CELL-O" VERTICAL MILLING MACHINE, TURRET TYPE, VARIABLE SPEED
MODEL 602
SERIAL NUMBER 6029837
TABLE SIZE 9" x 42"
LONGITUDINAL TRAVEL 31" MANUAL, 27-1/4" AUTOMATIC
CROSS TRAVEL 13"
VERTICAL TRAVEL 16"
RAM TRAVEL 16"
SPINDLE TAPER FITTED WITH SNAP QUICK CHANGE COLLETS
HEAD SWING-ACROSS TABLE 45 DEGREES FORWARD AND REVERSE
HEAD ROTATION 90 DEGREES EACH SIDE
TURRET ROTATION 360 DEGREES
SPINDLE SPEEDS LOW RANGE 100-640, HIGH RANGE 620-3800 RPM
INFINITELY VARIALBE
POWER DOWN FEED (3) .0015", .003" & .006" PER REV.
MOTOR 1-1/2 HP/ 220-440/ 3/ 80
EQUIPPED WITH: 2" AXIS READ-OUT SYSTEM
SPRAY MIST COOLANT SYSTEM
LONGITUDINAL POWER FEED
SNAP QUICK CHANGE TOOL HOLDER
