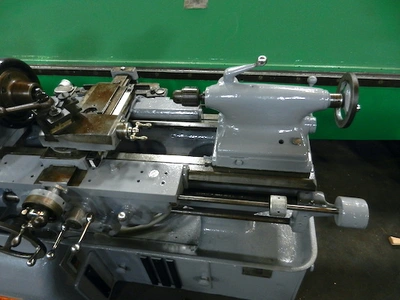

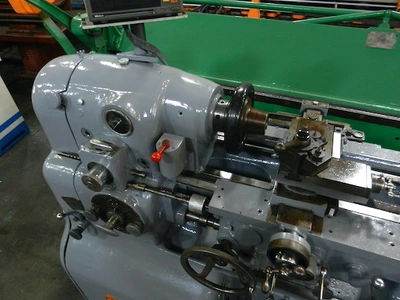

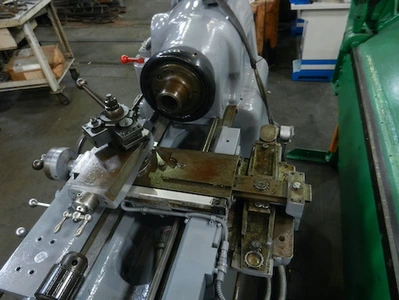

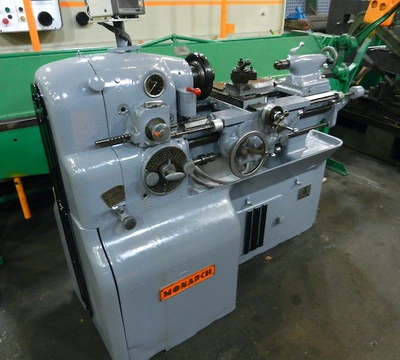

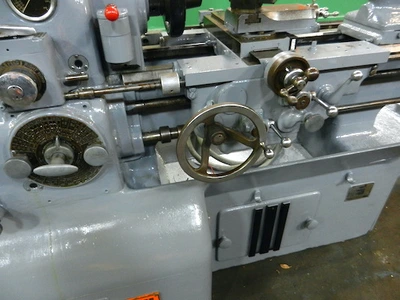

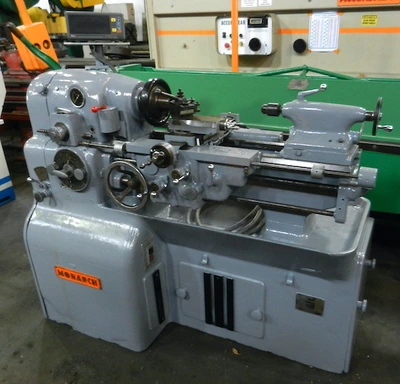

USED "MONARCH" HIGH PRECISION TOOL ROOM LATHE
MODEL 10EE
SERIAL # 11339
SWING OVER THE BED 12-1/2"
SWING OVER CARRIAGE 7-1/4"
DISTANCE BETWEEN CENTERS 20"
SPINDLE HOLE 1-13/32"
SPEEDS (VARIABLE) FROM 0 to 2,500 R.P.M.
D1-3 CAMLOCK SPIDLE
FEEDS (50) 0.0005" - 0.016"
INCHES (60) 3 - 184 T.P.I.
CROSS SLIDE TRAVEL 8"
TAILSTOCK TAPER #2 MT
TAILSTOCK BARREL TRAVEL 3-1/2"
MOTOR 5 HP/220/3/60
DIMENSIONS 62" x 30" x 52"
WEIGHT: 3,500 lbs. (APPROX.)
EQUIPPED WITH:
"JACOBS" FRONT MOUNTED COLLET CLOSER
MISC COLLETS
QUICK CHANGE TOOL POST & HOLDERS
TAPER ATTACHMENT
COOLANT SYSTEM
DRILL CHUCK

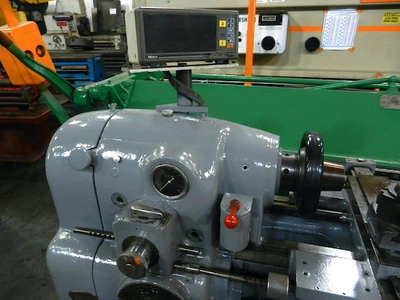

2 AXIS MITUTOYO DIGITAL READOUT & MISC
