USED PRATT & WHITNEY 1E

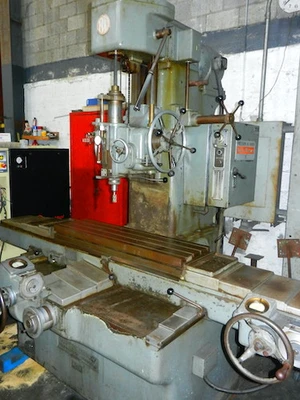

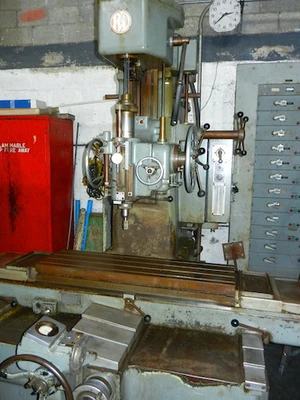

USED "PRATT & WHITNEY" PRECISION JIG BORING MACHINE
MODEL 1E
SERIAL # 21740
CAPACITY:
TABLE SIZE 12" x 44"
LONGITUDINAL TRAVEL 36"
TRANSVERSE TRAVEL 12"
TABLE TOP TO SPINDLE 4" TO 20"
HEAD TRAVEL TO COLUMN 11"
QUILL TRAVEL IN HEAD 5"
SPINDLE CENTER TO COLUMN 10"
SPINDLE CENTER TO COLUMN NECK 13-1/2"
QUILL DIAMETER 3-3/8"
SPINDLE SPEEDS (16) 65 to 2,800 R.P.M.
SPINDLE POWER FEEDS UP & DOWN (4) .0006" - .006"
MOTOR 3/4 HP (4) SPEED MOTOR
DIMENSIONS 106" x 86" x 96"
WEIGHT 7,500 LBS. (APPROX.)

EQUIPPED WITH:

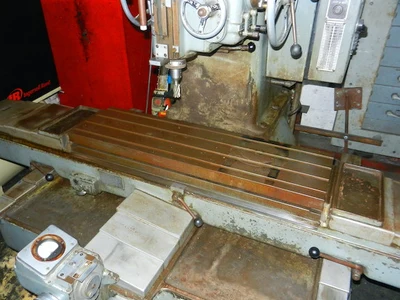

T-SLOTTED TABLE EQUIPPED WITH BUILT-IN MICROMETERS

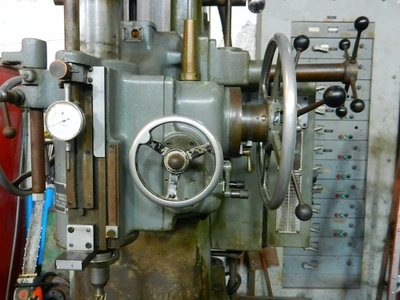

ADJ. DEPTH INDICATOR
