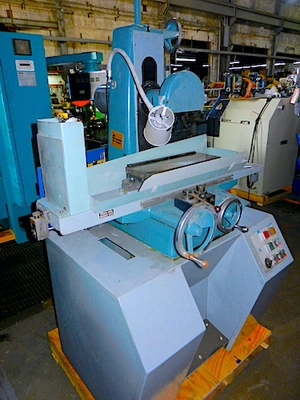

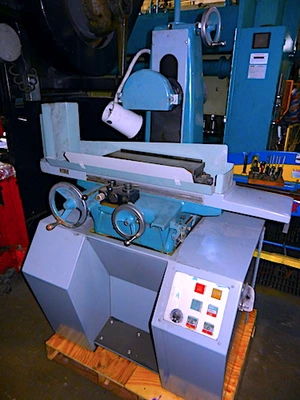

USED "HARIG" AUTOMATIC HYDRAULIC SURFACE GRINDING MACHINE
MODEL 618W - SERIAL # 1804-18
CAPACITY 6" x 18"
LONGITUDINAL TRAVEL 19"
CROSS FEED TRAVEL 6-3/4"
VERTICAL WORKING HEIGHT (OVER 7" DIAM. WHEEL) 0" TO 12"
GRINDING WHEEL 7" x 1/2" x 1-1/4"
ELEVATOR HANDWHEEL GRADUATION .001"
SPINDLE SPEED 3,450 R.P.M.
MOTOR 1 HP/220-440/3/60
VARIABLE TABLE SPEED 3 TO 70 F.P.M.
WEIGHT: 1,400 LBS. (APPROX.)
EQUIPPED WITH:

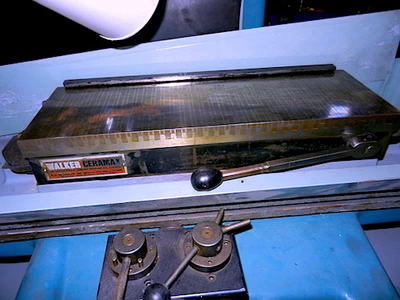

FINE SEGMENTED PERMANENT "WALKER CERAMAX" CHUCK
COOLANT SYSTEM
WORK LIGHT
AUTOMATIC LUBRICATION
