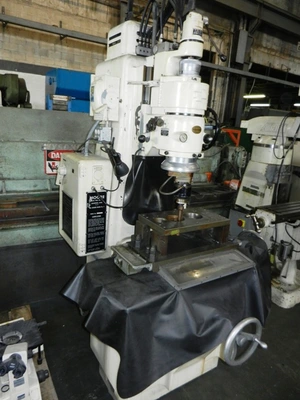

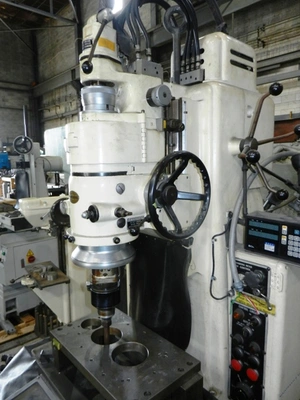

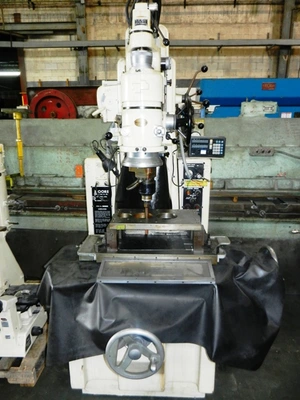

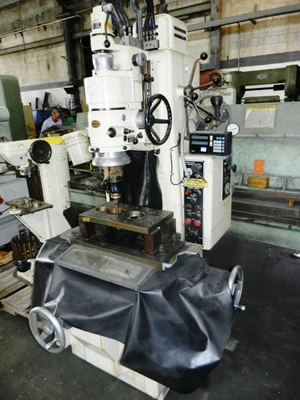

USED "MOORE" PRECISION JIG GRINDING MACHINE
MODEL 3
SERIAL # G1232
AGE OF MANUF. 1969
CAPACITY:
TABLE SIZE 11" x 24" (280mm x 610mm)
TABLE TRAVEL 11" x 18" (280mm x 450mm)
SPINDLE TO COLUMN WAYS 10" (250mm)
SPINDLE TO COLUMN BELOW WAYS 13-1/2" (340mm)
SPINDLE SPEEDS (INFINITE) 40 to 250 R.P.M.
SPINDLE SPEEDS BY AIR POWER
HYDRAULIC CONTROLS (INFINITE) FROM 4 to 240 STROKES PER MINUTE
GRINDING WHEEL SPEEDS FROM 6,700 TO 175,000 4 HEADS
GRINDING CAPACITY:
WITH GRINDING WHEELS 3/16" to 5" (4.762mm to 125mm)
WITH DIAMOND MANDRELS 0.017" (0.43mm)
MAIN SPINDLE VERTICAL TRAVEL 3-5/8" (80mm)
TAPER ADJUSTMENT OF SPINDLE UP TO 1-1/2" OR 3"
TOTAL ANGLE SETTING MAY BE POSITIVE OR NEGATIVE
RADIAL OFFSET OF GRINDING SPINDLE
WEIGHT 3,800 LBS. (APPROX.)
DIMENSIONS 82" x 69" x 102"
EQUIPPED WITH:

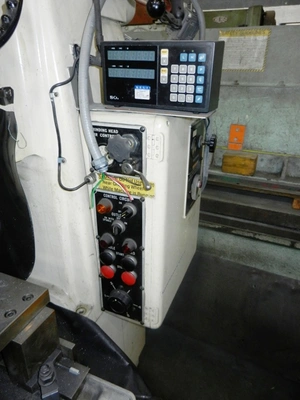

"SONY" 2 AXIS DRO
