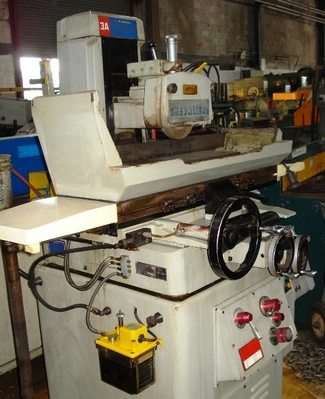

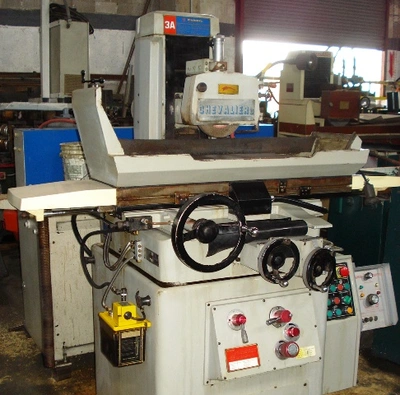

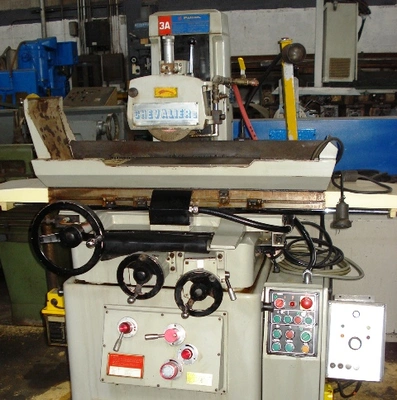

USED "CHEVALIER" AUTOMATIC HYDRAULIC SURFACE GRINDER
WITH RECIPROCATING TABLE
MODEL FSG-3A20
SERIAL # 3A-0482
CHUCK SIZE 8" x 18"
LONGITUDINAL TRAVEL 21"
CROSS FEED TRAVEL 9"
CAPACITY CHUCK UNDER 7" WHEEL 10-1/2"
DOWNFEED PER GRADUATION 0.0001"
TABLE FEED LONG. 0-70 F.P.M.
TABLE FEED CROSS 0-3/8"
GRINDING WHEEL 8" x 1" x 1-1/4"
SPINDLE SPEED 3,450 RPM
HYDRAULIC FEED 16 - 80 FPM
SPINDLE MOTOR 1.5 HP/220-440/3/60
VERTICAL MOTOR 1/4 HP/220-440/3/60
HYDRAULIC MOTOR 2 HP/220-440/3/60
WEIGHT: 3,500 lbs. (APPROX.)
EQUIPPED WITH:

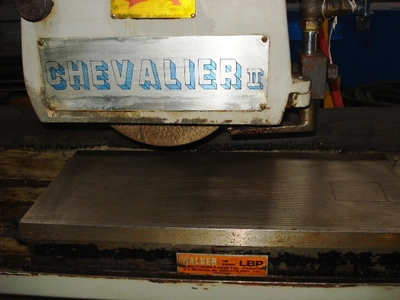

"WALKER CERAMAX" FINE POLE ELECTROMAGNETIC CHUCK
RECTIFIER
OVERHEAD DRESSER
WORK LIGHT
SPLASH GUARDS
COOLANT PUMP
HYDRAULIC & ELECTRIC CONTROLS.
