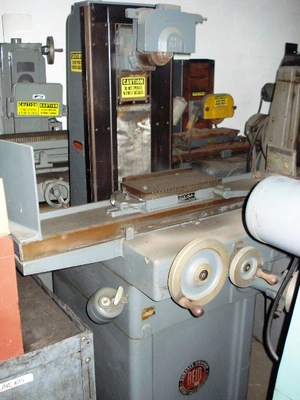

USED "REID" PRECISION SURFACE GRINDING MACHINE
MODEL 612H
SERIAL # 83760
CAPACITY 6" X 12"
LONGITUDINAL TRAVEL 14"
CROSS FEED TRAVEL 7-1/4"
VERTICAL WORKING HEIGHT (OVER 7" DIAM. WHEEL) UP TO 12-1/2"
PLATTEN WORKING AREA 6" x 12"
GRINDING WHEEL 7" x 1/2" x 1-1/4"
ELEVATOR HANDWHEEL GRADUATION .0005"
CROSS FEED HANDWHEEL DIAL GRADUATED TO .001"
SPINDLE SPEED 3450 R.P.M.
MOTOR 1 HP/220-440/3/60
WEIGHT: 1,400 LBS. (APPROX.)
EQUIPPED WITH: PERMANENT CHUCK, WORK LIGHT &
AUTOMATIC LUBRICATION
