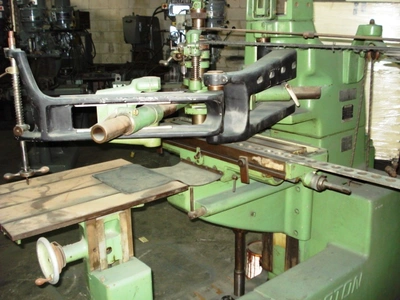

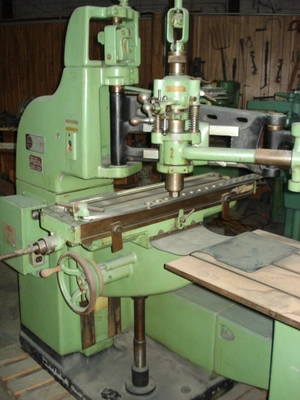

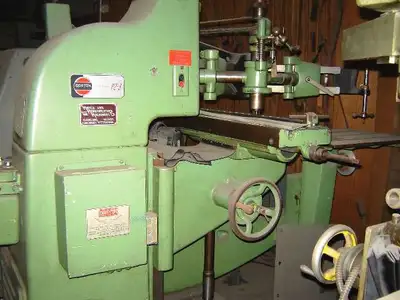

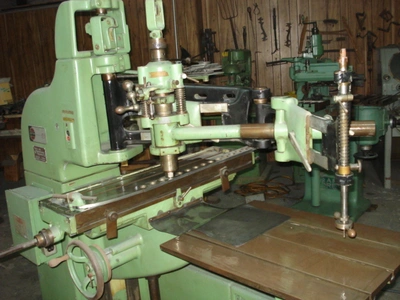

USED "GORTON" TRI-DIMENSIONAL PANTOGRAPH
MODEL P2-3
SERIAL #45703
TABLE & WORKING AREA 9" x 34"
NUMBER OF SLOTS & SIZE 3" OF 1/2"
LONG. TRAVEL 22"
CROSS TRAVEL 16-3/4"
VERTICAL TRAVEL SPINDLE 1"
VERTICAL TRAVEL KNEE 13"
MAXIMUM AREA 2 TO 1 REDUCTION
CIRCLE DIAMETER 10-1/2"
RECTANGLE 8" x 15"
LONGITUDINAL STRIP 4" x 19"
RATIOS FROM 2 TO 1 TO 8 TO 1
COLLET SIZE CAPACITY 3/8"
SPEEDS (9) FROM 1300 TO 13000 RPM
MOTOR 1/2 HP/220-440/3/60
AGE OF MANUF. 1964
DIMENSIONS: 77" x 87" x 78"
WEIGHT 3,100 LBS. (APPROX.)
