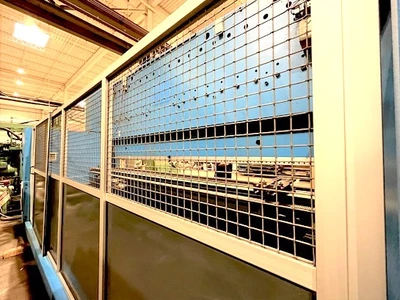

USED 2007 FINN-POWER 200-4100 TS 3
Overview
Specifications

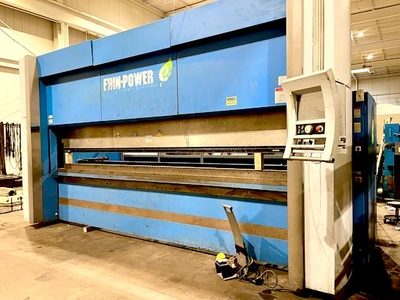

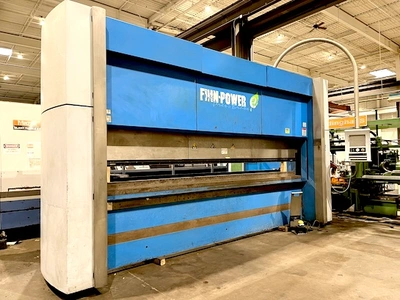

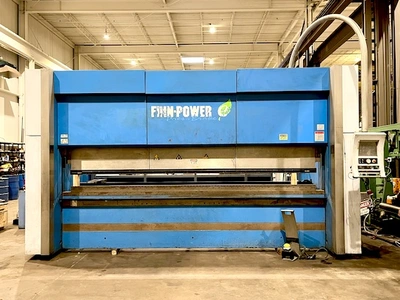

USED "FINN-POWER" 4 AXIS CNC HYDRAULIC PRESSBRAKE

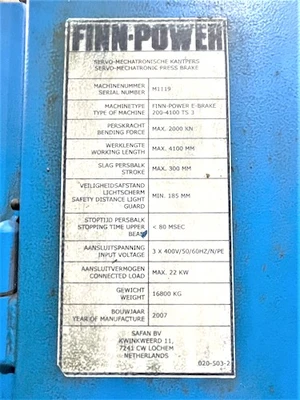

MODEL 200-4100 TS 3 - SERIAL # M1119
YEAR OF MANUF. 2007
CAPACITY 200 TONS (NEAR BOTTOM)
OVERALL LENGTH 161"
DISTANCE BETWEEN HOUSINGS 144"
STROKE 11.8"
APPROACH SPEED 77mm/SEC
BENDING SPEED 10mm/SEC
MOTOR 20 HP/ 3 / 60
EQUIPPED WITH: WINDOWS BASED TS3-F 7-AXIS CNC CONTROLS

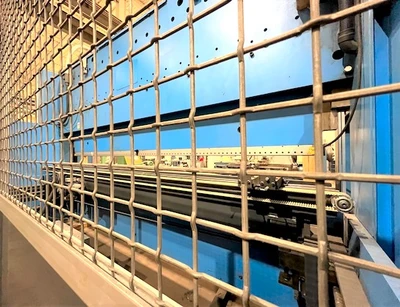

5-AXIS BACKGUAGE (X, R, Z1, Z2 & X1)
DIMENSIONS: 210" x 81" x 115" - WEIGHT: 37,000 LBS. (APPROX.)
THE TS3 CONTROL HAS 2D & 3D PROGRAMMING CAPABILITY.
THE BENDING ORDER CAN BE GRAPHICALLY PROGRAMMED AT THE PRESS BRAKE ALONG WITH ALL THE PROGRAM PREPARATION.
A KEYBOARD IS INCLUDED IN THE OPTIONAL TS3 CONTROL FOR EASY ALPHANUMERIC IMPUT ALONG WITH DELEM VBEND OFFLINE PROGRAMING SOFTWARE.

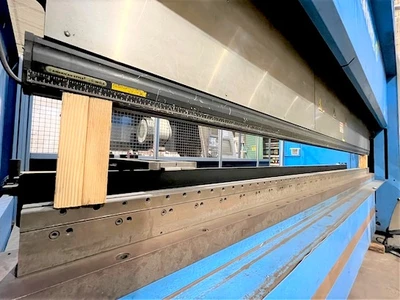

UPPER RAM IS SET UP FOR AMERICAN STYLE WILA DIES.
