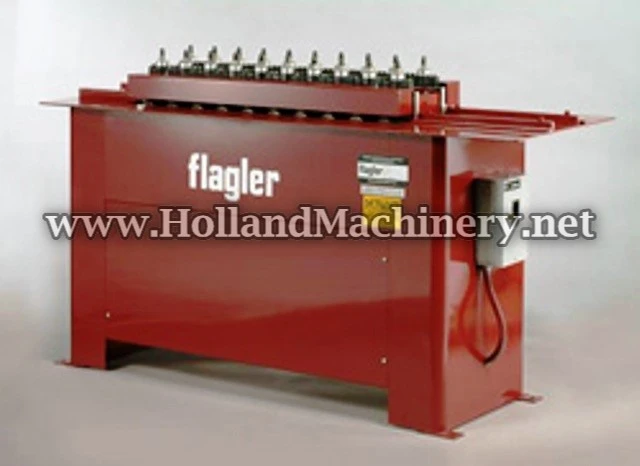

NEW "FLAGLER" ROLLFORMER MACHINE
MODEL H-2510
THIS MACHINE IS STANDARD EQUIPMENT WITH NO TOOLING IN CENTER POSITION
THERE ARE (2) SETS OF EXTENDED SHAFTS TO FORM ANY OF THE AUXILIARY ROLLS SHOWN BELOW
10 STATIONS
SPEED 30 OR 100 FPM (APPROX.)
MOTOR 5 HP /230-460/3/60/ 1,800 R.P.M.
DRIVE MATCHED DOUBLE V BELT
BASE ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS 68" x 24" x 48"
FEED TABLE HEIGHT 34-5/8"
WEIGHT 1,050 LBS. (APPROX.)
THIS MACHINE IS RECOMMENDED WHEN FORMING ON PREPAINTED STOCK OR
SPECIAL PROFILES DUE TO THE INDIVIDUAL MICROMETER ADJUSTMENTS ON EACH OF THE TOP SHAFTS
THERE ARE (2) SETS OF EXTENDED SHAFTS TO FORM ANY OF THE PROFILES FOR THE H-2 1/2-7 MODEL
OR SPECIALLY DESIGNED TOOLING
