| Weight | 500 LBS. (APPROX.) | 500 LBS. (APPROX.) |

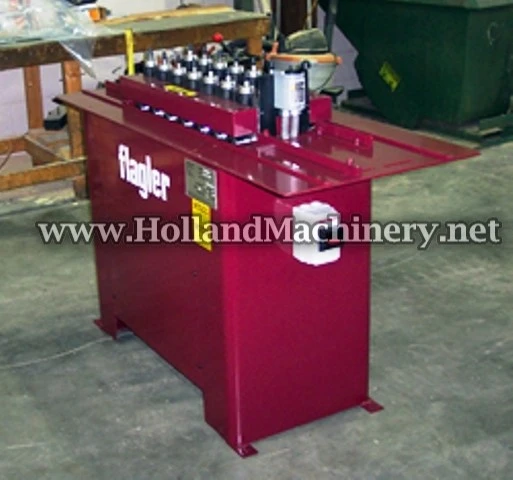

NEW "FLAGLER" ROLLFORMER MACHINE
MODEL H-257
THIS MACHINE IS STANDARD EQUIPMENT WITH NO TOOLING IN CENTER POSITION
THERE ARE (2) SETS OF EXTENDED SHAFTS TO FORM ANY OF THE AUXILIARY ROLLS SHOWN BELOW
7 STATIONS
SPEED 30-100 FPM (APPROX.)
MOTOR 2 HP /230-460/3/60/ 1,800 R.P.M.
DRIVE MATCHED DOUBLE V BELT
BASE ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS 56" x 24" x 41"
FEED TABLE HEIGHT 34-5/8"
WEIGHT 500 LBS. (APPROX.)
THIS MACHINE IS RECOMMENDED WHEN FORMING ON PREPAINTED STOCK OR
SPECIAL PROFILES DUE TO THE INDIVIDUAL MICROMETER ADJUSTMENTS ON EACH OF THE TOP SHAFTS.
THERE ARE (2) SETS OF EXTENDED SHAFTS TO FORM ANY OF THE PROFILES FOR THE H-2 1/2-7 MODEL
OR SPECIALLY DESIGNED TOOLING.
