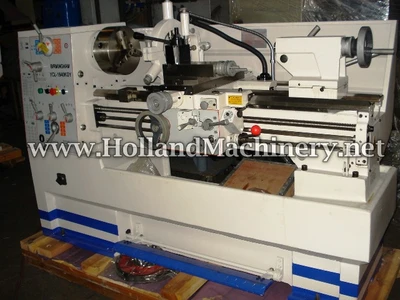

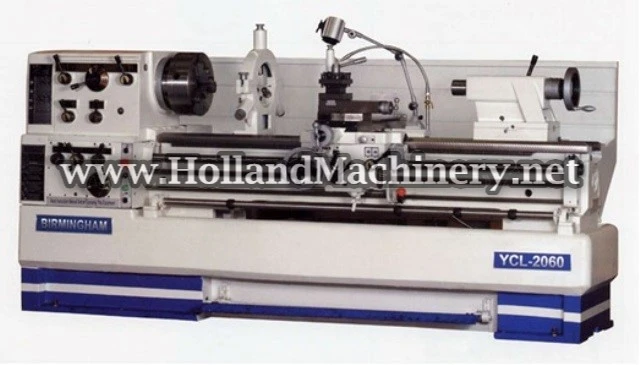

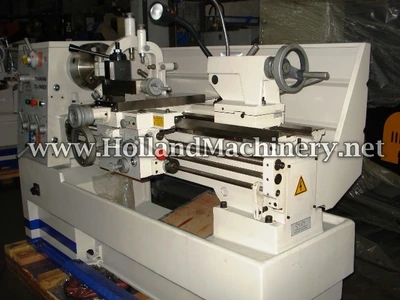

NEW BIRMINGHAM YCL-2060

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL YCL-2060
CAPACITY 20" x 60"
SWING OVER THE BED 20"
SWING OVER THE CARRIAGE 11-7/8"
SWING OVER THE GAP 29"
LENGTH OF THE GAP 6-1/2"
DISTANCE BETWEEN CENTERS 60"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 45 TO 1,600 R.P.M.
SPINDLE HOLE 3-1/8"
INCH / METRIC / DIAMETRICAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 7"
QUILL DIAMETER 3"
MOTOR 10 HP/220-440/3/60
WEIGHT 5,900 LBS. (APPROX.)
EQUIPPED WITH: 3 & 4 JAW CHUCK, SQUARE TOOL POST, SPLASH GUARD, CHIP TRAY,
FOOT BRAKE, STEADY REST, FOLLOW REST, FACE PLATE, DRIVE PLATE,
THREADING DIAL, COOLANT PUMP AND MISC

OPTIONS:
10" LARGE STEADY REST W/ROLLER JAWS FOR YCL-2060
5C HAND LEVER TYPE COLLECT CLOSER "JFK" USA
5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT
DIGITAL READ OUT: "NEWALL" DP-700 OR "ACU-RITE" OR "UNIQ IMPORT"
