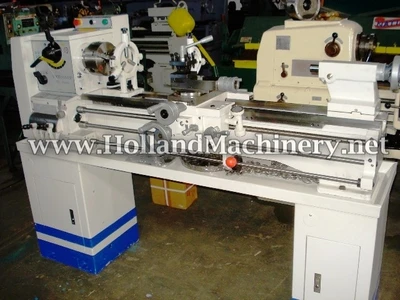

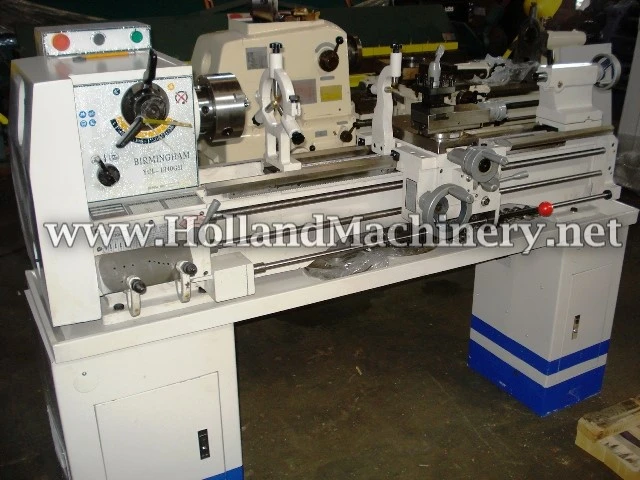

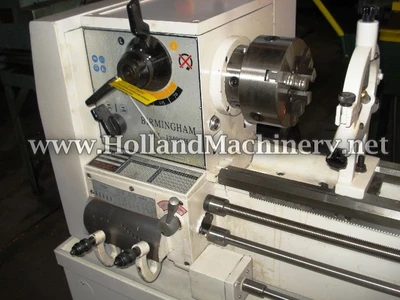

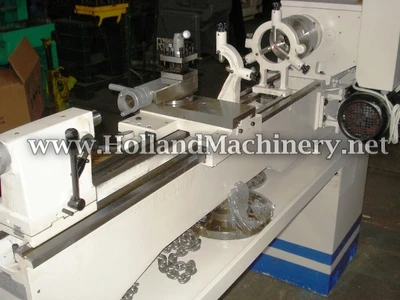

NEW BIRMINGHAM YCL-1236 GH

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL YCL-1236 GH
SWING OVER THE BED 12"
SWING OVER CARRIAGE 7"
SWING OVER THE GAP 17"
LENGTH OF THE GAP 7"
DISTANCE BETWEEN CENTERS 36"
SPINDLE HOLE 1-1/2"
SPEEDS (9) FROM 70 TO 1,400 R.P.M.
INCH / METRIC
D1-4 CAMLOCK SPINDLE
METRIC THREADING (30) 0.2mm TO 4.5mm
INCHES (40) 4 TO 112 TPI
TAILSTOCK TAPER #3 MT
TAILSTOCK BARREL TRAVEL 4"
MOTOR 2 HP/220/1/60
WEIGHT: 1,250 lbs. (APPROX.)
DIMENSIONS 61" x 28" x 50"
EQUIPPED WITH: 3 JAW 6" CHUCK, 4 JAW 8" CHUCK, 4 WAY SQUARE TOOL POST,
STEADY REST, FOLLOW REST, FACE PLATE, THREADING DIAL, CHIP PAN,
SPLASH GUARD, FLOOR STAND, TOOL BOX, CHANGE GEARS FOR THREADING & MISC.

OPTIONS:
TAPER ATTACHMENT
HALOGEN WORK LIGHT
COOLANT SYSTEM WITH TANK
5C HAND LEVER TYPE COLLET CLOSER
5C COLLET CHUCK
MICRO CARRIAGE STOP
DIGITAL READOUT
