NEW BIRMINGHAM KGY-1660

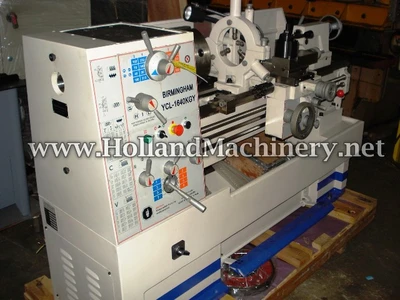

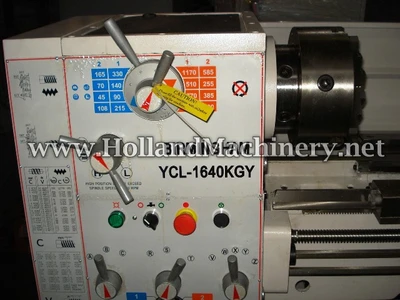

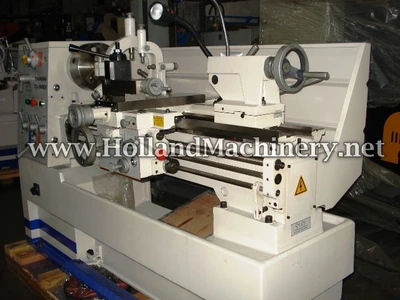

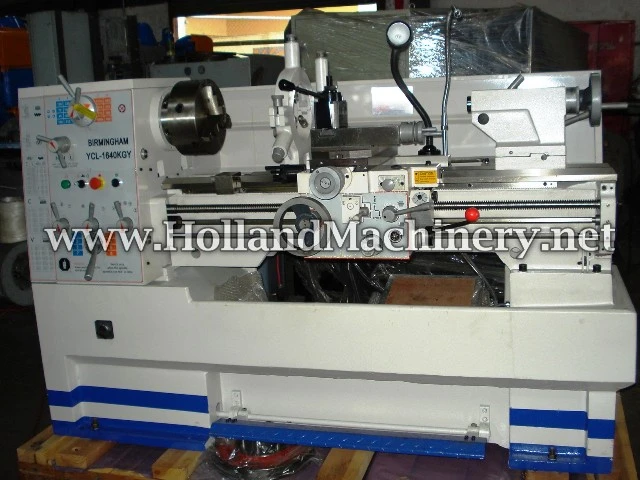

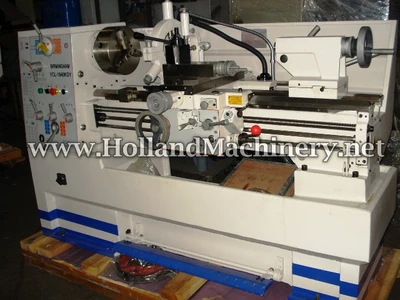

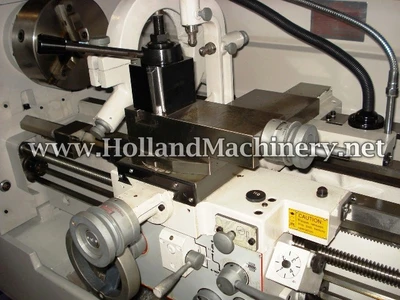

NEW "BIRMINGHAM" GEAR HEAD ENGINE LATHE
MODEL KGY-1660
SWING OVER THE BED 16"
SWING OVER CARRIAGE 8-1/4"
SWING OVER THE GAP 23-1/4"
DISTANCE BETWEEN CENTERS 60"
SPINDLE HOLE 2"
SPEEDS (16) FROM 45 TO 1,800 R.P.M.
INCH AND / METRIC / DIAMETRIC / MODULAR
D1-6 CAMLOCK SPINDLE
METRIC THREADING (39) 0.2mm TO 14mm
INCHES (45) 2 TO 72 TPI
LONGITUDINAL FEED RANGE 0.002" – 0.067"
TAILSTOCK TAPER #4 MT
TAILSTOCK BARREL TRAVEL 4-3/4"
MAIN MOTOR 6 HP/220/3/60
COOLANT MOTOR 1/8 HP/220/3/60
WEIGHT: 4,500 lbs. (APPROX.)

EQUIPPED WITH:
8" 3 JAW CHUCK, 8" 4 JAW CHUCK, STEADY REST,
FOLLOW REST, FACE PLATE, FOOT BRAKE, WORK LIGHT, CARRIAGE STOP,
COOLANT SYSTEM, 4 WAY SQUARE TOOL POST, THREADING DIAL, CENTER,
CHIP PAN, FULL LENGTH SPLASH GUARD & MISC.
