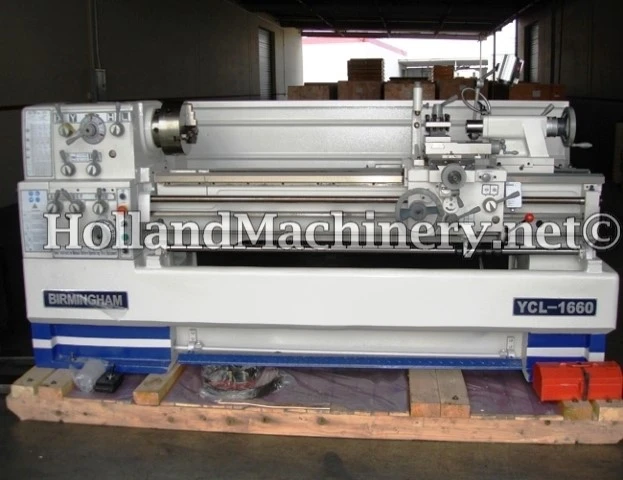

NEW BIRMINGHAM YCL-1660

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL YCL-1660
CAPACITY 16" x 60"
SWING OVER THE BED 16"
SWING OVER THE CARRIAGE 8-13/16"
SWING OVER THE GAP 25-3/16"
LENGTH OF THE GAP 9-1/2"
DISTANCE BETWEEN CENTERS 60"
SPINDLE NOSE D1-6 CAMLOCK
SPEEDS (12) 25 TO 2,000 R.P.M.
SPINDLE HOLE 2-9/32"
INCH / METRIC / DIAMETRICAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #4
QUILL TRAVEL 4-12/16"
QUILL DIAMETER 2-3/8"
MOTOR 5 HP/220-440/3/60
WEIGHT 5,100 LBS. (APPROX.)
DIMENSIONS 107" x 41" x 54"

EQUIPPED WITH: 3 & 4 JAW CHUCK, SQUARE TOOL POST, SPLASH GUARD,
CHIP TRAY, FOOT BRAKE, STEADY REST, FOLLOW REST, FACE PLATE,
THREADING DIAL, COOLANT PUMP AND MISC.

OPTIONS:
5C HAND LEVER TYPE COLLECT CLOSER "JFK" USA
5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT
"DIGITAL READ OUT": NEWALL DP-700 OR "ACU-RITE" OR "UNIQ IMPORT"
