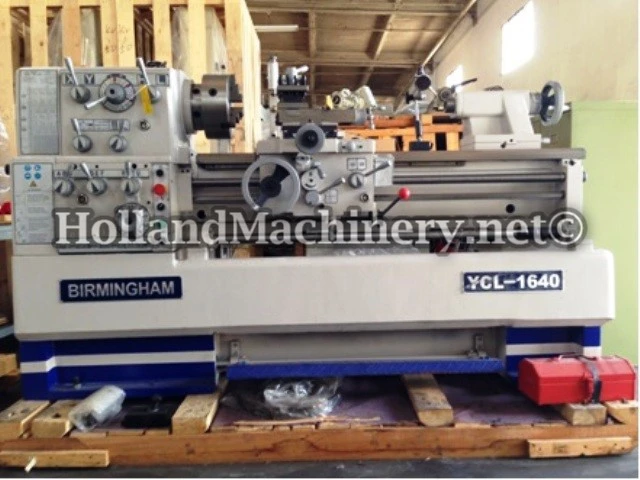

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL YCL-1640
CAPACITY 16" x 40"
SWING OVER THE BED 16"
SWING OVER THE CARRIAGE 8-13/16"
SWING OVER THE GAP 25-3/16"
LENGTH OF THE GAP 9-1/2"
DISTANCE BETWEEN CENTERS 40"
SPINDLE NOSE D1-6 CAMLOCK
SPEEDS (12) 25 TO 2,000 R.P.M.
SPINDLE HOLE 2-9/32"
INCH / METRIC / DIAMETRICAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #4
QUILL TRAVEL 4-12/16"
QUILL DIAMETER 2-3/8"
MOTOR 7.5 HP/220-440/3/60
WEIGHT 4,100 LBS. (APPROX.)
DIMENSIONS 86" x 41" x 54"
EQUIPPED WITH: 3 & 4 JAW CHUCK, SQUARE TOOL POST,
SPLASH GUARD, CHIP TRAY, FOOT BRAKE, STEADY REST,
FOLLOW REST, FACE PLATE, THREADING DIAL, COOLANT PUMP AND MISC.
OPTIONS:
5C HAND LEVER TYPE COLLECT CLOSER "JFK" USA
5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT
"DIGITAL READ OUT": NEWALL DP-700 OR "ACU-RITE" OR "UNIQ IMPORT"
