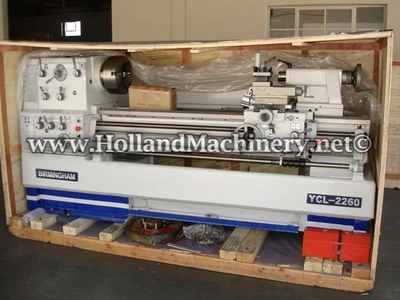

NEW BIRMINGHAM YCL-2260

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL YCL-2260
CAPACITY 22" x 60"
SWING OVER THE BED 22"
SWING OVER THE CARRIAGE 13-3/4"
SWING OVER THE GAP 31"
LENGTH OF THE GAP 6-1/2"
DISTANCE BETWEEN CENTERS 60"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 45 TO 1,600 R.P.M.
SPINDLE HOLE 3-1/8"
INCH / METRIC / DIAMETRAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 7"
QUILL DIAMETER 3"
MOTOR 10 HP/220-440/3/60
WEIGHT 6,000 LBS. (APPROX.)

EQUIPPED WITH: 3 & 4 JAW CHUCK, SQUARE TOOL POST, SPLASH GUARD,
CHIP TRAY, FOOT BRAKE, STEADY REST, FOLLOW REST, FACE PLATE,
DRIVE PLATE, THREADING DIAL, COOLANT PUMP AND MISC.
