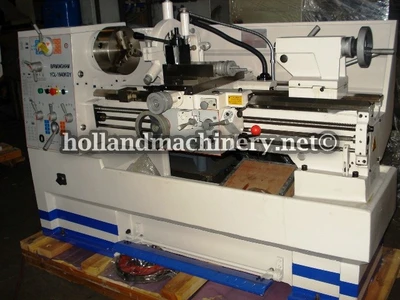

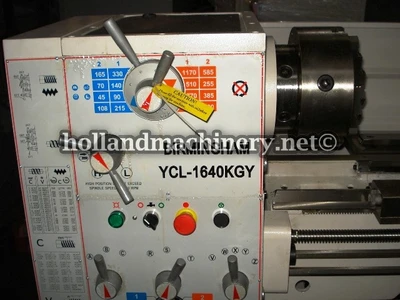

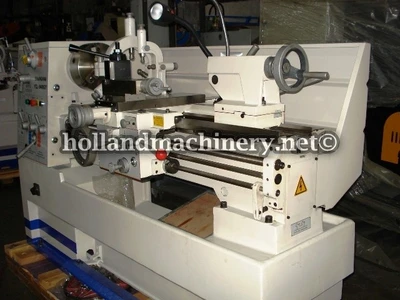

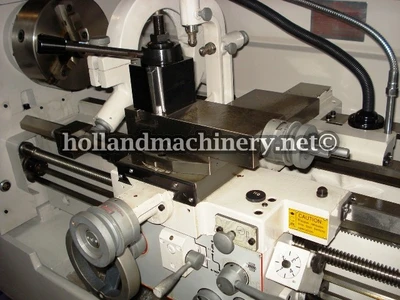

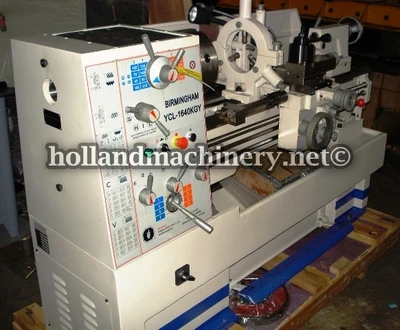

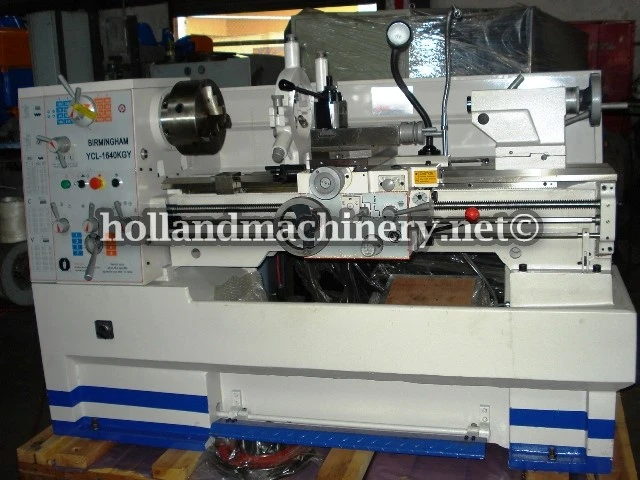

NEW BIRMINGHAM KGY-1640
Overview
Specs
NEW "BIRMINGHAM" GEAR HEAD ENGINE LATHE
MODEL KGY-1640
SWING OVER THE BED 16"
SWING OVER CARRIAGE 8-1/4"
SWING OVER THE GAP 23-1/4"
DISTANCE BETWEEN CENTERS 40"
SPINDLE HOLE 2"
SPEEDS (16) FROM 45 TO 1,800 R.P.M.
INCH AND / METRIC / DIAMETRAL / MODULAR
D1-6 CAMLOCK SPIDLE
METRIC THREADING (39) 0.2mm TO 14mm
INCHES (45) 2 TO 72 TPI
LONGITUDINAL FEED RANGE 0.002" - 0.067"
TAILSTOCK TAPER #4 MT
TAILSTOCK BARREL TRAVEL 4-3/4"
MAIN MOTOR 6 HP/220/3/60
COOLANT MOTOR 1/8 HP/220/3/60
WEIGHT: 3,950 lbs. (APPROX.)
EQUIPPED WITH: 8" 3 JAW CHUCK, 8" 4 JAW CHUCK, STEADY REST,
FOLLOW REST, FACE PLATE, FOOT BRAKE, WORK LIGHT, CARRIAGE STOP,
COOLANT SYSTEM, 4 WAY SQUARE TOOL POST, THREADING DIAL, CENTER, CHIP
PAN, FULL LENGTH SPLASH GUARD & MISC.
