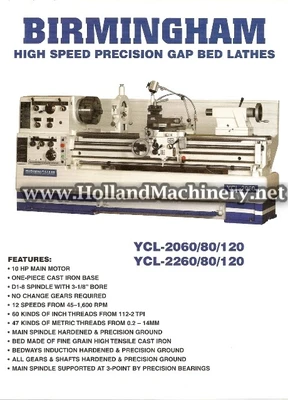

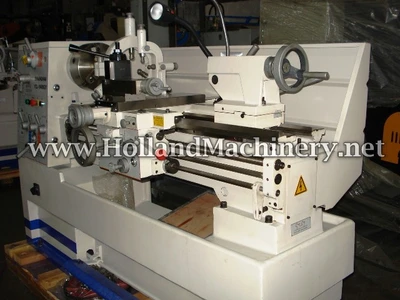

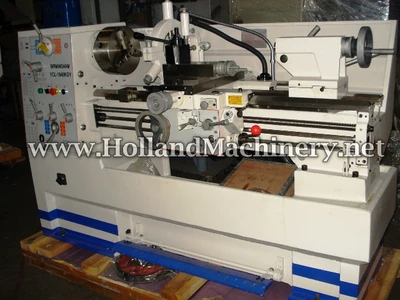

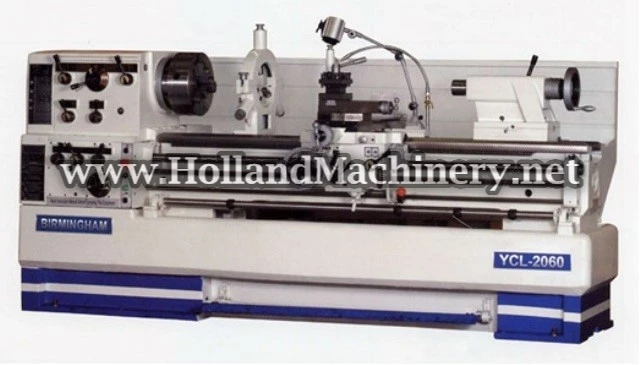

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL YCL-2080

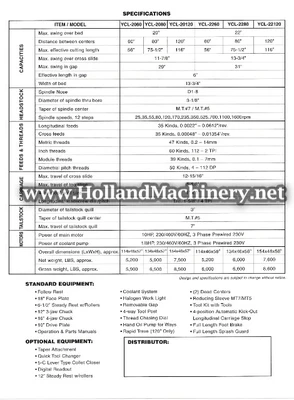

CAPACITY 20" x 80"
SWING OVER THE BED 20"
SWING OVER THE CARRIAGE 11-7/8"
SWING OVER THE GAP 29"
LENGTH OF THE GAP 6-1/2"
DISTANCE BETWEEN CENTERS 80"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 45 TO 1,600 R.P.M.
SPINDLE HOLE 3-1/8"
INCH / METRIC / DIAMETRAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 7"
QUILL DIAMETER 3"
MOTOR 10 HP/220-440/3/60
WEIGHT 6,500 LBS. (APPROX.)
EQUIPPED WITH:

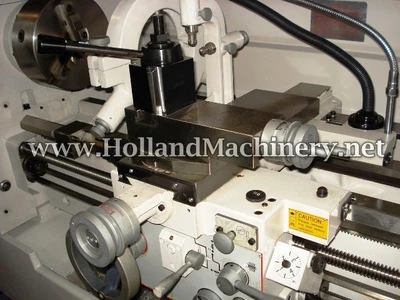

3 & 4 JAW CHUCK, SQUARE TOOL POST, SPLASH GUARD,
CHIP TRAY, FOOT BRAKE, STEADY REST, FOLLOW REST,
FACE PLATE, DRIVE PLATE, THREADING DIAL, COOLANT PUMP
OPTIONAL EQUIPMENT:
- TAPER ATTACHMENT
- 12" STEADY REST WITH ROLLER JAWS
- 5C HAND LEVER TYPE COLLET CLOSER
- DIGITAL READOUT
