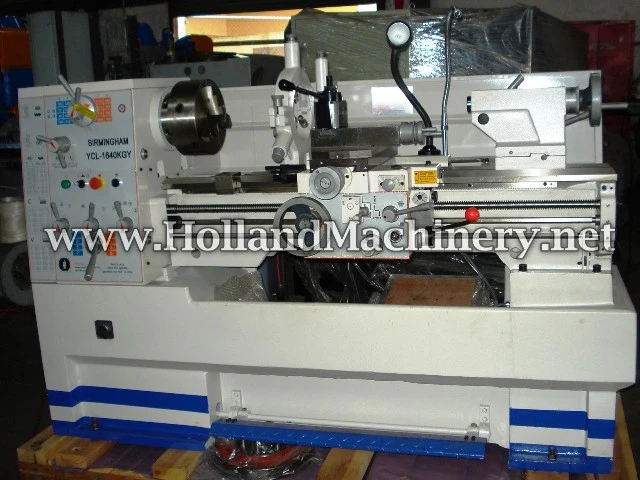

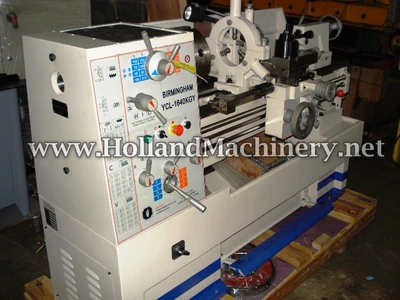

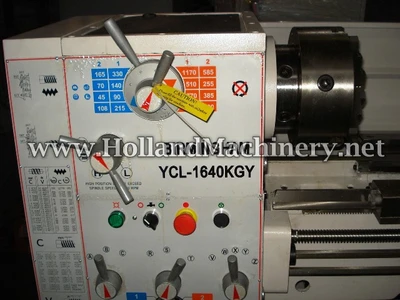

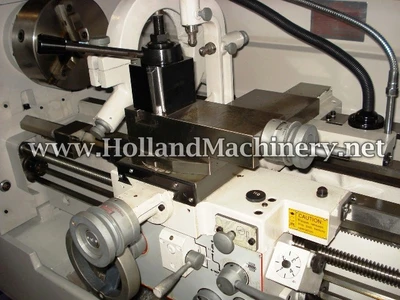

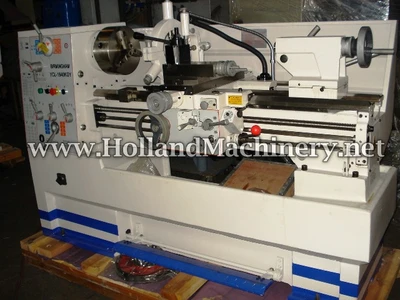

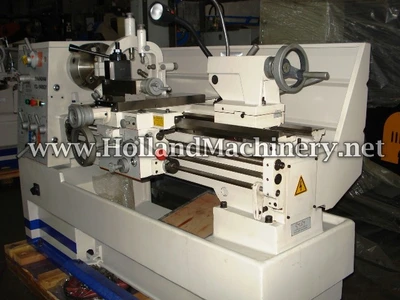

NEW BIRMINGHAM KGY-1440GH

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL KGY-1440GH
CAPACITY 14" x 40"
SWING OVER THE BED 14"
SWING OVER THE CARRIAGE 8-13/16"
SWING OVER THE GAP 19-3/4"
LENGTH OF THE GAP 8-1/4"
DISTANCE BETWEEN CENTERS 40"
SPINDLE NOSE D1-4 CAMLOCK
SPEEDS (8) 70 TO 2,000 R.P.M.
SPINDLE HOLE 1-1/2"
INCH / METRIC / DIAMETRAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #3
QUILL TRAVEL 4"
QUILL DIAMETER 1-21/32"
MOTOR 2 HP/220/1/60 (AVAILABLE 1 OR 3 PHASE)
COOLANT PUMP 1/16 HP
WEIGHT 1,400 LBS. (APPROX.)
DIMENSIONS 72" x 31" x 49"

EQUIPPED WITH:
3 & 4 JAW CHUCK, SQUARE TOOL POST,
SPLASH GUARD, CHIP TRAY, FOOT BRAKE, STEADY REST,
FOLLOW REST, FACE PLATE, THREADING DIAL, COOLANT PUMP AND MISC.
