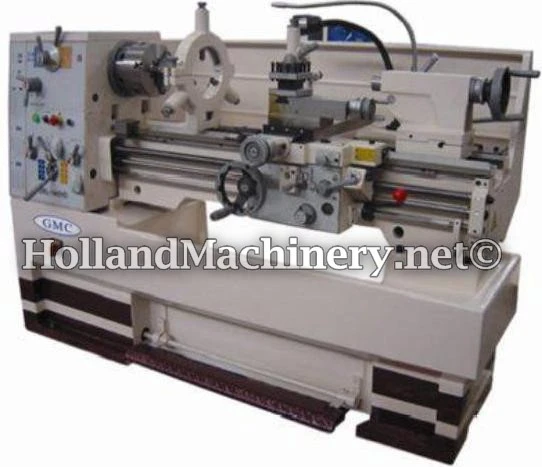

NEW "GMC" GEAR HEAD ENGINE LATHE
MODEL GML-1440BGF
SWING OVER THE BED 14"
SWING OVER CARRIAGE 8-1/4"
SWING OVER THE GAP 19-1/4"
LENGTH OF THE GAP 6-1/2"
DISTANCE BETWEEN CENTERS 40"
SPINDLE HOLE 1-1/2"
SPEEDS (8) FROM 70 TO 2000 R.P.M.
INCH AND / METRIC / DIAMETRICAL / MODULAR
D1-4 CAMLOCK SPINDLE
METRIC THREADING (44) 0.1mm TO 7mm
INCHES (56) 4 TO 56 TPI
LONGITUDINAL FEED RANGE 0.002" - 0.03"

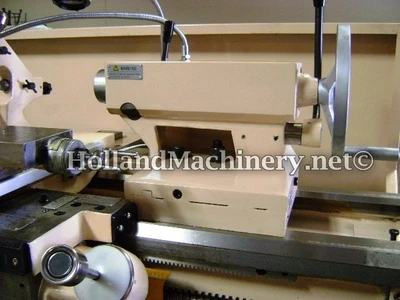

TAIL STOCK TAPER #3 MT
TAILSTOCK QUILL DIAMETER 1-1/2"
TAILSTOCK BARREL TRAVEL 4"
MOTOR 3 HP/220/1/60
WEIGHT: 1,750 lbs.

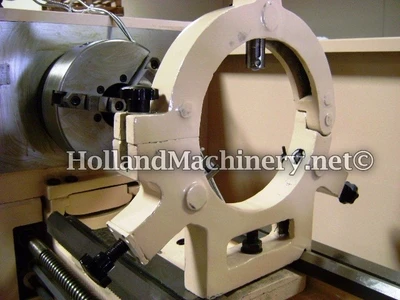

EQUIPPED WITH: 6" 3 JAW CHUCK, 8" 4 JAW CHUCK, STEADY REST,
FOLLOW REST, FACE PLATE, FOOT BRAKE, WORK LIGHT,
CARRIAGE STOP, COOLANT SYSTEM, 4 WAY SQUARE TOOL POST,
FOLLOW REST, THREADING DIAL, CENTER, CHIP PAN,
FULL LENGTH SPLASH GUARD & MISC.
ASK ABOUT OPTIONAL EQUIPMENT
