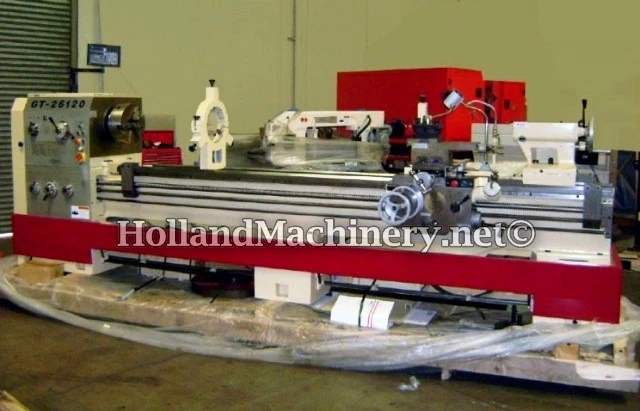

NEW GMC GT-26120

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GT-26120
CAPACITY 26" x 120"
SWING OVER THE BED 26"
SWING OVER THE CARRIAGE 16-1/2"
SWING OVER THE GAP 34-1/4"
LENGTH OF THE GAP 9"
DISTANCE BETWEEN CENTERS 80"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 36 TO 1,600 R.P.M.
SPINDLE HOLE 4-1/8"
INCH /METRIC /DIAMETRAL /MODULAR /THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 6"
QUILL DIAMETER 3"
MAIN MOTOR 15 HP/220-440/3/60
RAPID TRAVERSE 1/3 HP
COOLANT MOTOR 1/8 HP
WEIGHT 9,350 LBS. (APPROX.)
EQUIPPED WITH: 12" 3 JAW CHUCK,
20" 4 JAW CHUCK, SQUARE TOOL POST,
RAPID TRAVERSE, SPLASH GUARD (APRON ONLY),
24" FACE PLATE, DRIVE PLATE, CHIP TRAY,
FOOT BRAKE, STEADY REST, FOLLOW REST,
THREADING DIAL, COOLANT PUMP, WORK LIGHT,CENTER AND MISC.
FREE TAPER ATTACHMENT

OPTIONAL EQUIPMENT FOR "GMC" HEAVY DUTY LATHES
-DRO for #GT-26120, NEWALL (England), 2 axis, free install
-SINO DRO for GT-26120, resolution .0001", free install
-Leveling pad
-3/4" - 5" small steady rest with roller jaws
-10" - 16" large steady rest with brass tips
-5-C Hand lever type collet closer, "JFK" USA, free install
-33 pc 5C collet set, from 1/16 to 1-1/16" by 32ndth
-Taper turning attachment, free installation
-Live center for tailstock MT# 5
-5pc Indexable carbide turning set
-3/8" carbide insert
