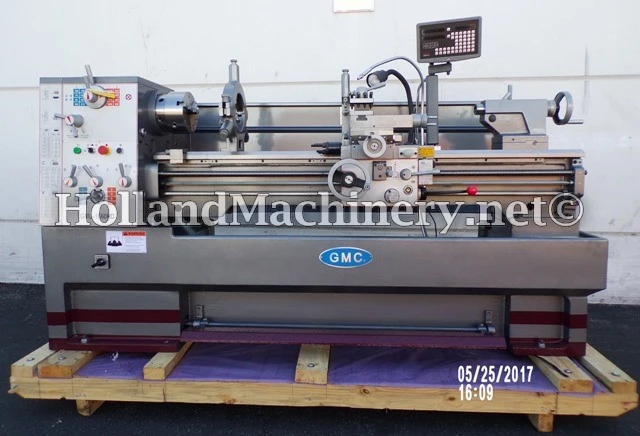

NEW GMC GML-1660HD

NEW "GMC" GEAR HEAD ENGINE LATHE
MODEL GML-1660HD
SWING OVER THE BED 16"
SWING OVER CARRIAGE 10-1/4
SWING OVER THE GAP 23-1/4"
LENGTH OF THE GAP 8-1/2"
DISTANCE BETWEEN CENTERS 60"
SPINDLE HOLE 2-1/16"
SPEEDS (16) FROM 45 TO 1800 R.P.M.
INCH AND / METRIC / DIAMETRAL / MODULAR
D1-6 CAMLOCK SPINDLE
METRIC THREADING (42) 0.2mm TO 14mm
INCHES (45) 2 TO 70 TPI
LONGITUDINAL FEED RANGE 0.0018" - 0.07"

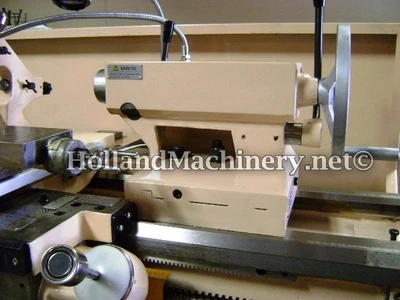

TAILSTOCK TAPER #4 MT
TAILSTOCK QUILL DIAMETER 2-1/16"
TAILSTOCK BARREL TRAVEL 5"
MAIN MOTOR 6 HP/220/3/60
COOLANT MOTOR 1/8 HP/220/3/60
WEIGHT: 4,150 lbs.

EQUIPPED WITH: 8" 3 JAW CHUCK,

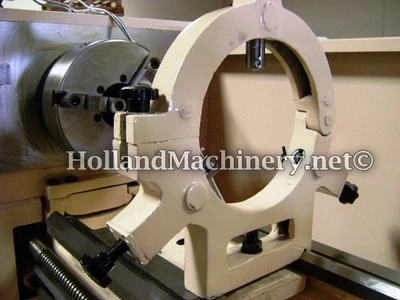

10" 4 JAW CHUCK, STEADY REST,
FOLLOW REST, FACE PLATE, FOOT BRAKE,
WORK LIGHT, CARRIAGE STOP, COOLANT SYSTEM,
4 WAY SQUARE TOOL POST, THREADING DIAL,
CENTER, CHIP PAN, FULL LENGTH SPLASH GUARD & MISC.

OPTIONAL EQUIPMENT AVAILABLE
