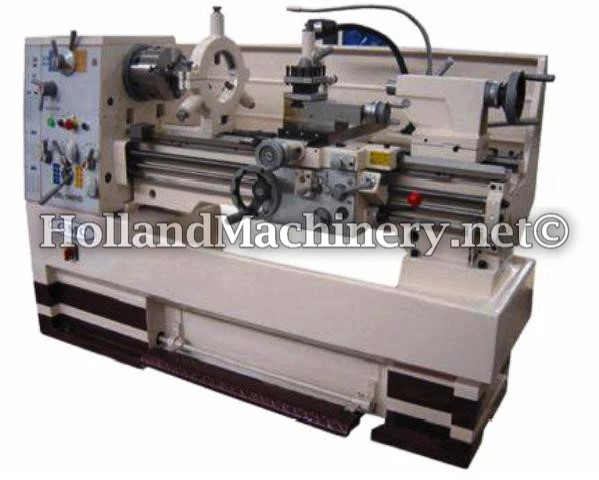

NEW GMC GML-1440HD

NEW "GMC" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL GML-1440HD
SWING OVER THE BED 14-7/8"
SWING OVER CARRIAGE 10-1/16"
SWING OVER THE GAP 23-1/4"
LENGTH OF THE GAP 8-1/2"
DISTANCE BETWEEN CENTERS 40"
SPINDLE HOLE 2-1/16"
SPEEDS (16) FROM 45 TO 1800 R.P.M.
INCH AND /METRIC /DIAMETRAL /MODULAR
D1-6 CAMLOCK SPINDLE
METRIC THREADING (39) 0.2mm TO 14mm
INCHES (45) 2 TO 70 TPI
LONGITUDINAL FEED RANGE 0.0018" - 0.07"
TAILSTOCK TAPER #4 MT
TAILSTOCK QUILL DIAMETER 2-1/16"
TAILSTOCK BARREL TRAVEL 5"
MOTOR 6 HP/220/3/60
EQUIPPED WITH: 8" 3 JAW CHUCK, 10" 4 JAW CHUCK,
STEADY REST, FOLLOW REST, FACE PLATE, FOOT BRAKE,
WORK LIGHT, TAPER ATTACHMENT, CARRIAGE STOP,
COOLANT SYSTEM, 4 WAY SQUARE TOOL POST, FOLLOW REST,
THREADING DIAL, CENTER, CHIP PAN,
FULL LENGTH SPLASH GUARD & MISC.
DIMENSIONS 79" x 38" x 53"
WEIGHT: 4,350 lbs.
