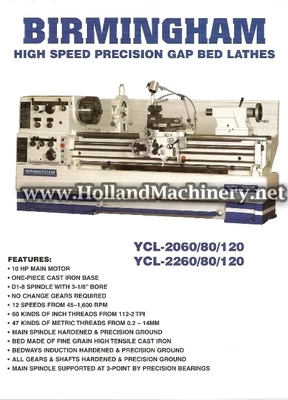

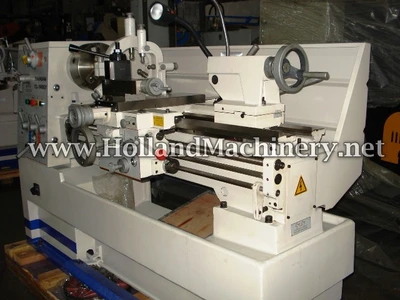

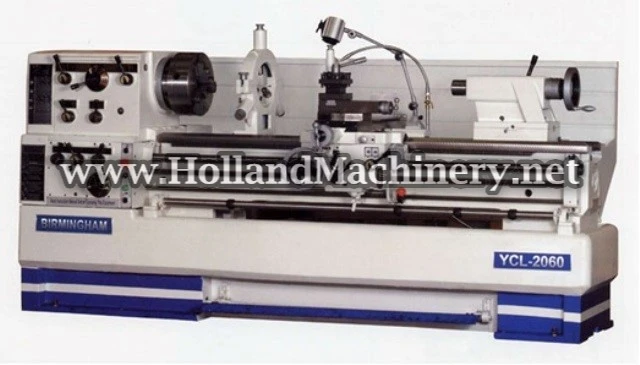

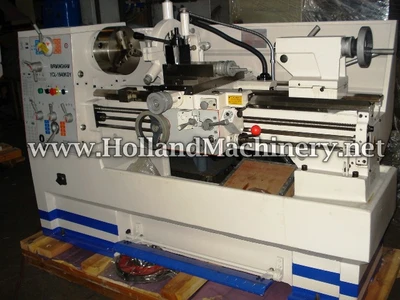

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE

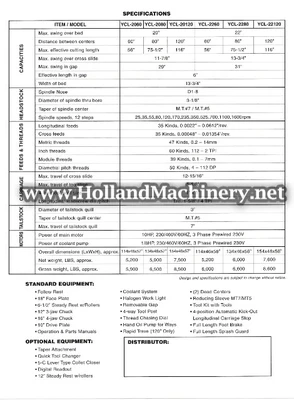

MODEL YCL-2280
CAPACITY 22" x 80"
SWING OVER THE BED 22"
SWING OVER THE CARRIAGE 13-3/4"
SWING OVER THE GAP 31"
LENGTH OF THE GAP 6-1/2"
DISTANCE BETWEEN CENTERS 80"
SPINDLE NOSE D1-8 CAMLOCK
SPEEDS (12) 45 TO 1,600 R.P.M.
SPINDLE HOLE 3-1/8"
INCH / METRIC / DIAMETRAL / MODULAR / THREADING
TAILSTOCK: TAPER MORSE #5
QUILL TRAVEL 7"
QUILL DIAMETER 3"
MOTOR 10 HP/220-440/3/60
WEIGHT 6,600 LBS. (APPROX.)
EQUIPPED WITH:
3 & 4 JAW CHUCK

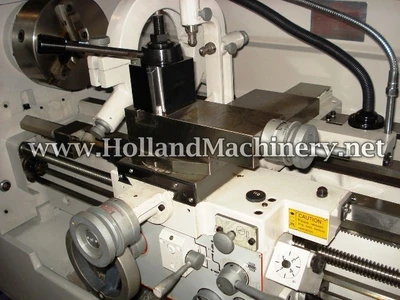

SQUARE TOOL POST
SPLASH GUARD
CHIP TRAY
FOOT BRAKE
STEADY REST
FOLLOW REST
FACE PLATE
DRIVE PLATE
THREADING DIAL
COOLANT PUMP
Optional Equipment
TAPER ATTACHMENT
12" STEADY REST WITH ROLLER JAWS
5C HAND LEVER TYPE COLLET CLOSER
DIGITAL READOUT
