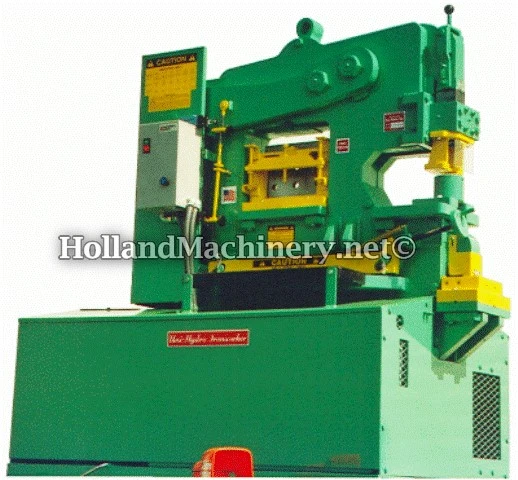

NEW UNIHYDRO PRO-125

NEW "UNIHYDRO" HYDRAULIC IRONWORKER 4 STATIONS
MODEL PRO-125
CAPACITY 125 TONS
STROKES PER MINUTE 8 (MAX. CAPACITY)
THROAT DEPTH 12"
CAPACITY (MILD STEEL):
PUNCHING 3-1/8" THRU 1/2"
2" THRU 3/4"
1-9/16" THRU 1"
FLAT PLATE 24" x 1/4"
20" x 1/2"
14" x 3/4"
CHOICE OF SQUARE, V NOTCHER OR PIPE NOTCHER
MOTOR 7.5 HP/220-440/3/60
MOTOR 7.5 HP/220/1/60 (OPTIONAL)
OIL CAPACITY 28 GALLONS
WEIGHT 4,650 LBS. (APPROX)
EQUIPPED WITH: FLAT BAR SHEAR TABLE,
MAGNETIC STARTER & GREASE BANK

OPTIONAL CAPACITY WITH ACCESSORIES:
ANGLES 6" x 6" x 1/2" @ 90°
ANGLES 4" x 4" x 3/8" @ 45°
CHANNEL SHEAR 2", 3", 4", 5" OR 6"
SOLID ROUND 1-1/4"
SOLID SQUARE 1-1/4"
NOTCHER 90° 3" x 3" x 1/4"
4" x 4" x 1/2" (POWER CAVITY)
COPER 2" x 3" x 3/8"
3" x 3" x 3/8" (POWER CAVITY)
PIPE NOTCHER
BRAKE
OPTIONAL TOOLING AVAILABLE
