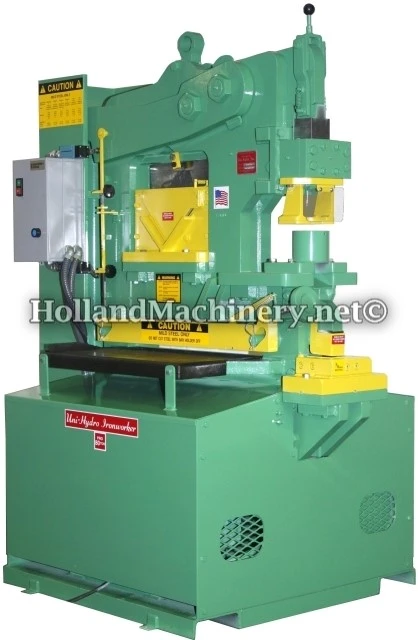

NEW "UNIHYDRO" HYDRAULIC IRONWORKER 4 STATIONS
MODEL PRO-80
CAPACITY 80 TONS
STROKES PER MINUTE 9 (MAX. CAPACITY)
THROAT DEPTH 9"
CAPACITY (MILD STEEL):
PUNCHING 2-1/4" THRU 7/16"
2" THRU 1/2"
1-3/8" THRU 3/4"
FLAT PLATE 24" x 1/4"
20" x 1/2"
10" x 3/4"
CHOICE OF SQUARE, V NOTCHER OR PIPE NOTCHER
MOTOR 7.5 HP/220-440/3/60
MOTOR 7.5 HP/220/1/60 (OPTIONAL)
OIL CAPACITY 16 GALLONS
WEIGHT 3,100 LBS. (APPROX)
EQUIPPED WITH: FLAT BAR SHEAR TABLE,
MAGNETIC STARTER & GREASE BANK
OPTIONAL CAPACITY WITH ACCESSORIES:
ANGLES 6" x 6" x 1/2" @ 90°
ANGLES 4" x 4" x 3/8" @ 45°
CHANNEL SHEAR 2", 3", 4", 5" OR 6"
SOLID ROUND 1-1/4"
SOLID SQUARE 1-1/4"
NOTCHER 90° 3" x 3" x 1/4"
COPER 2" x 3" x 3/8"
PIPE NOTCHER 1/2" TO 2"
BRAKE 24" x 1/4"
OPTIONAL TOOLING AVAILABLE
