| Weight | 1,350 LBS. (APPROX) | 1,350 LBS. (APPROX) |

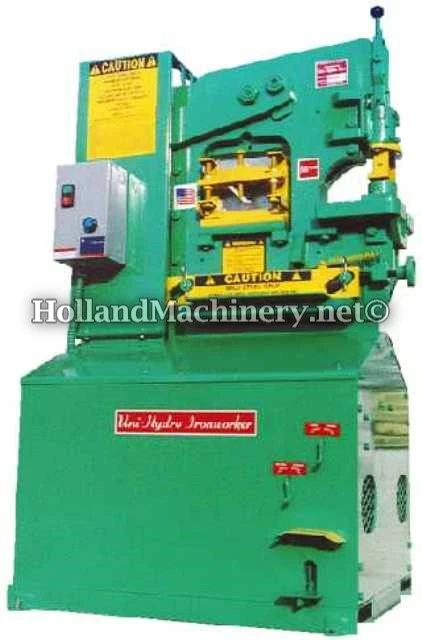

NEW "UNIHYDRO" HYDRAULIC IRONWORKER 3 STATIONS
MODEL 56-14
CAPACITY 55 TONS
STROKES PER MINUTE 7 (MAX. CAPACITY)
THROAT DEPTH 6"
CAPACITY (MILD STEEL):
PUNCHING 1-1/4" THRU 1/2"
13/16" THRU 3/4"
FLAT PLATE 14" x 3/8"
10" x 1/2"
6" x 3/4"
MOTOR 5 HP/220-440/3/60
MOTOR 5 HP/220/1/60 (OPTIONAL)
OIL CAPACITY 20 QUARTS
WEIGHT 1,350 LBS. (APPROX)
EQUIPPED WITH: MAGNETIC STARTER
OPTIONAL CAPACITY WITH ACCESSORIES:
ANGLES 3" x 3" x 3/8" @ 90°
ANGLES 2" x 2" x 5/16" @ 45°
CHANNEL SHEAR 2", 3" OR 4"
SOLID ROUND 1-1/16"
SOLID SQUARE 1-1/16"
NOTCHER 90° 3" x 3" x 1/4"
COPER 1-3/4" x 2" x 1/4"
PIPE NOTCHER 1/2" TO 2"
BRAKE 9" x 1/4"
OPTIONAL TOOLING AVAILABLE
