| Weight | 1,250 LBS. (APPROX) | 1,250 LBS. (APPROX) |

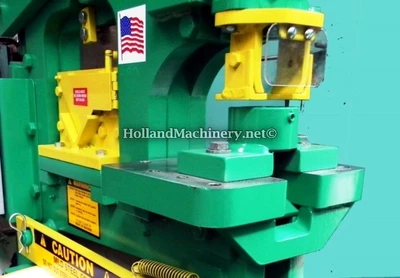

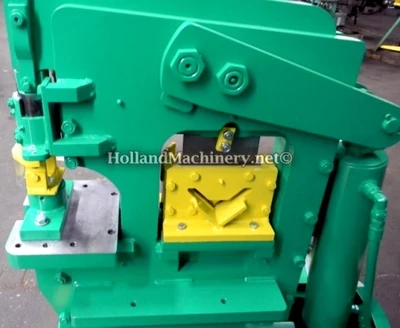

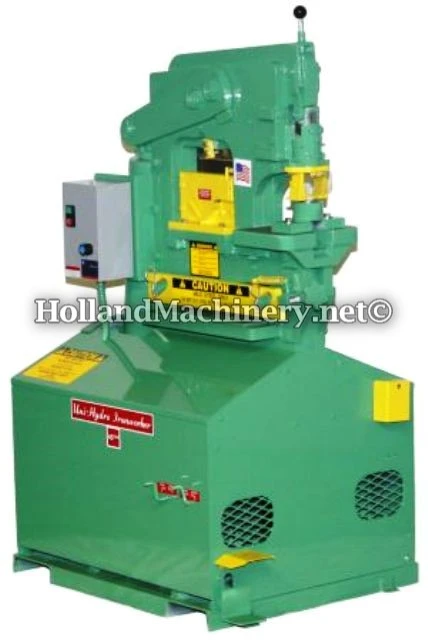

NEW "UNIHYDRO" HYDRAULIC IRONWORKER 3 STATIONS
MODEL 45-14
CAPACITY 45 TONS
STROKES PER MINUTE 7 (MAX. CAPACITY)
THROAT DEPTH 6"
CAPACITY (MILD STEEL):
PUNCHING 1-1/8" THRU 1/2"
1-1/2" THRU 3/8"
FLAT PLATE 14" x 3/8"
10" x 1/2"
6" x 5/8"
MOTOR 3 HP/220-440/3/60
MOTOR 3 HP/220/1/60 (OPTIONAL)
OIL CAPACITY 15 QUARTS
WEIGHT 1,250 LBS. (APPROX)
EQUIPPED WITH: REMOTE FOOT PEDAL & MAGNETIC STARTER
OPTIONAL CAPACITY WITH ACCESSORIES:
ANGLES 3" x 3" x 3/8" @ 90°
ANGLES 2" x 2" x 5/16" @ 45°
CHANNEL SHEAR 1", 2" OR 3"
SOLID ROUND 3/4"
SOLID SQUARE 3/4"
NOTCHER 90° 3" x 3" x 1/4"
COPER 1-3/4" x 2" x 1/4"
PIPE NOTCHER 1/2" TO 1-1/2"
BRAKE 9" x 1/4"
OPTIONAL TOOLING AVAILABLE
