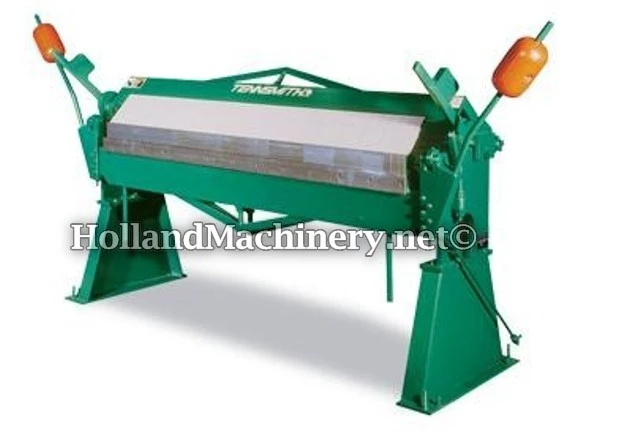

NEW TENNSMITH HBT72-16

NEW "TENNSMITH" UNIVERSAL HAND BRAKE
MODEL HBT72-16
CAPACITY 16ga (MILD STEEL)
CAPACITY 20ga (STAINLESS STEEL)
BENDING LENGTH 72"
MAXIMUM DEPTH OF BOX 4"
MAXIMUM LIFT OF BEAM 1-1/2"
FRONT TO REAR BEAM ADJUSTMENT 1/2"
MINIMUM REVERSE BEND 5/8"
MINIMUM FLANGE IN CAPACITY MATERIAL 1"
TOP SEGMENT TOOLING WIDTHS 2", 3", 4"
BOTTOM SEGMENT TOOLING WIDTHS 1", 1-1/2", 4", 6", 8", 12", 20"
BENDING BEAM TOOLING WIDTHS 1", 1-1/2", 6", 8", 12", 20"
DIMENSIONS: 90" x 36" x 54"
WEIGHT: 2,250 LBS. (APPROX.)
