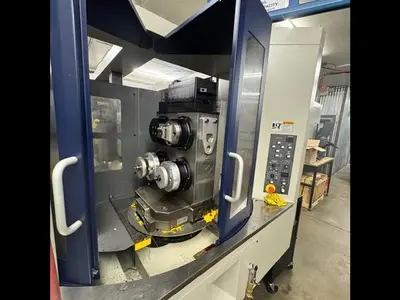

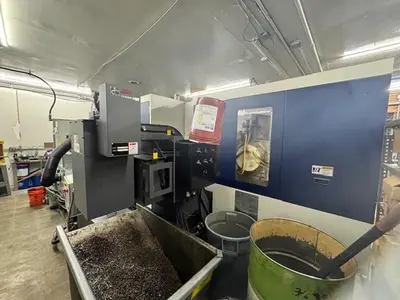

USED 2016 KIWA KH-45

Kiwa KH-45, 20,000 RPM, PC-2, 120 Tools
CNC Horizontal Machining Center

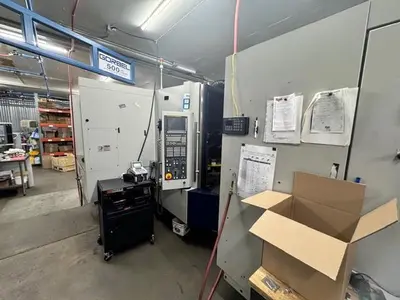

With FANUC 31i-MB Control 2016




One (1) Kiwa KH-45, PC2 CNC Flexible Horizontal Machining Center with FANUC 31i-MB CNC Control, as per specifications attached including:

• 2 Pallet Changer​
• 400MM X 400MM Pallet Work Surface
• 2362.2 IPM Rapid Traverse
• 30 HP Built in Spindle Motor
• 150-20,000 RPM Spindle Speed
• Oil Air Lube
• 120 Tools ATC
• HSK63 Taper

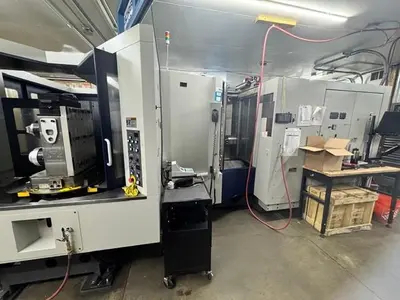

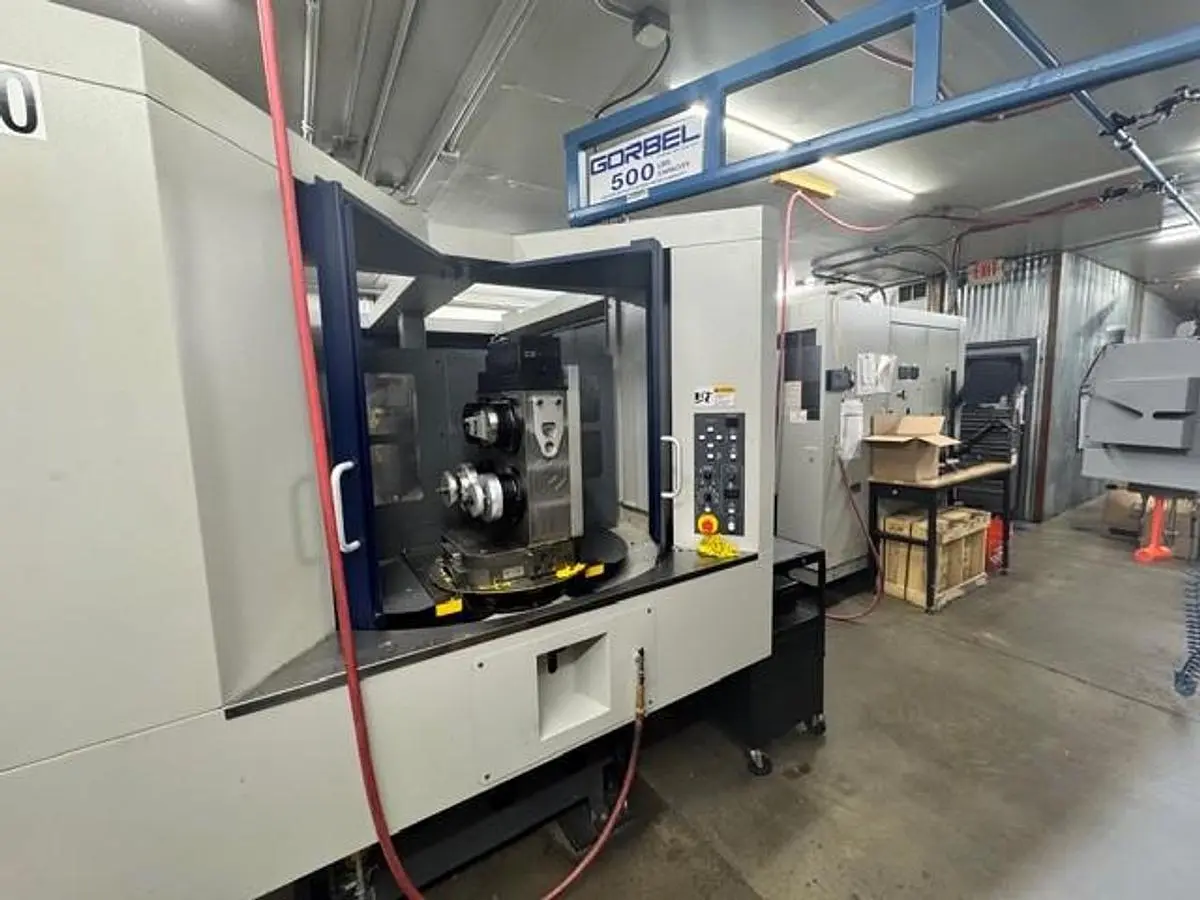

• Load/Unload Station
• Provision for Coolant thru the Spindle 70 Bar
• Spindle Oil Cooler
• Full 4th Axis
• Pallet and Chip Wash
• Coolant  Chip Flow System

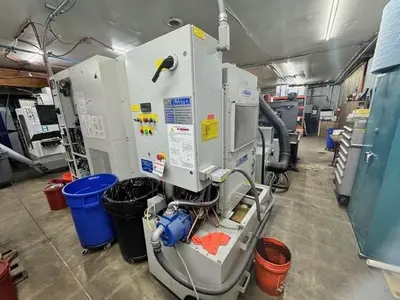

• Standard Coolant Tank with Pump
• Chip Conveyor - Hinge Belt
• Standard Control Software Package Including:
− AICCII
− Tool Life Management
− 1280 Meter Memory
− Helical Interpolation
− Tool Offsets 400 pc.
− 200 Block Look Ahead
− Macro Programming
− Registered Program 1000
 Movement And Ranges
• X-Axis Travel​​640 mm  (25.2")
• Y-Axis Travel​​610 mm  (24.0") ​
• Z-Axis Travel​​680 mm  (26.8")​​
• Pallet Surface to Spindle Center​​Min 50mm (2.0”)
​​​​Max 660mm (26.0)
• Pallet Center to Spindle Nose​​Min 100 mm (3.9”)
​​​​Max 780 mm  (30.7”)
Table (Pallet)
• Pallet Working Surface​​400 x 400 mm  (15.7" x 15.7")
• Maximum Workpiece Size – PC2 (Dia. X H)​​Ø 750 x 1000 mm  (Ø 29.5 x 39.4”)
• Pallet (Table) Loading Capacity​​500 kg (1102lbs.)
• Pallet Surface Configuration Tapped Holes​​25-M16 P=80mm 3.1”
• Min. Table Indexing Angle​​.001 deg.
• Table Indexing Time​​1.1 sec / 90 deg
• Table Indexing Accuracy​​0.001 deg.
• Table Rotating Speed​​33.3 min -1
• Feed Motor: ​​AC 2.7 kw (3.7 HP)

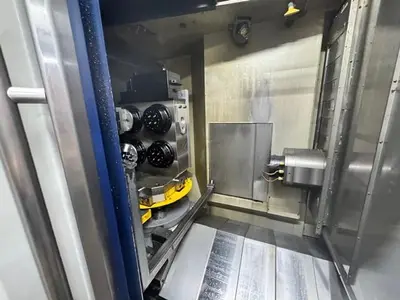

Spindle
• Spindle Motor( Built in type)​​22.0 kW/30 HP
• Spindle Speed Range​​150-20,000 min-1
• Spindle Speed Change Command​​S5 Digits Direct Command
• Type of Spindle Taper Hole​​HSK63
• Max. Spindle Torque​​200 N.m (148.-ft lb) at 1050rpm
• Spindle Air Blow​​Standard
• Spindle Orientation​​Standard (Electrical)
Feedrate
• Rapid Traverse Rate (X/Y/Z)​​60,000 mm/min (2,362.2 ipm)
• Feedrate (X/Y/Z)​​1-30,000 mm/min  (1181 ipm)
• Min. Movement Increment (X/Y/Z)​​0.001 mm  (.00004")

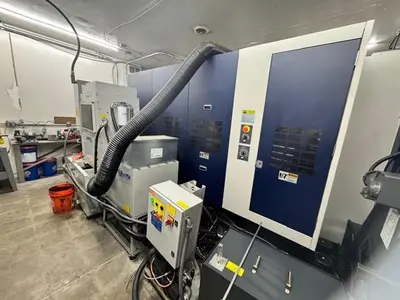

Automatic Tool Changer
• Type of Tool Shank​​HSK63
• Type of Retention Knob​​N/A
• Tool Storage Capacity​​120 Tools & 1 tool in spindle
• Max.Tool Diameter (adjacent pots full)​​Ø 95 mm / 3.7”
• Max.Tool Diameter (adjacent pots empty)​​Ø 185mm / 7.2”
• Max. Tool Length​​400 mm  (15.7")
• Max. Tool Mass​​8 kg (17.6 lbs.)
• Method of Tool Selection​​RandomMemory/Fixed to Pot
• Tool Changing Time: Tool to Tool​​.9 seconds(1.7 sec:heavy Tool)
• Tool Changing Time: Chip to Chip​​2.8seconds(3.6 sec:heavy tool)

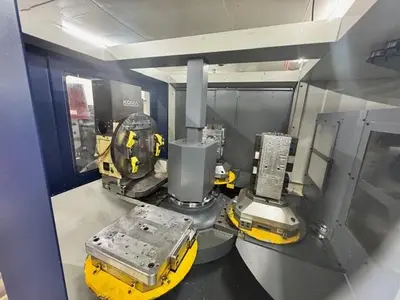

Automatic Pallet Changer
• No. of Pallets​​2
• Method of Pallet Change​​Rotation
• Pallet Changing Time​​13 seconds
• Pallet Clamping Force​​5000 lbs
• Pallet Size​​​400 x 400 mm  (15.7" x 15.7")
• Pallet (Table) Loading Capacity​ ​500 kg (1,102lbs.)
Motors
• Feed Motor:
​X Axis​​AC 4.5 kw (6.0 HP)
​Y Axis​​AC 4.5 kw (6.0 HP)
​Z Axis​​AC 4.5 kw (6.0 HP)
​B Axis​​AC 208 kw (2.9 HP)
• Lubrication Pump Motor​​23 W (0.031 hp)
• Hydraulic Pump Motor​​AC 2.2 kw (2.9 HP)
• Coolant Pump Motor​​.37kw (0.5hp) x 1
​​​​600 W (0.8 hp) x 2
Power Supply
• Electrical Power Supply​​50 KVA , 200/230V 3 Phase
​​​​55 KVA for 6-/8-APC Machine
• Compressed Air Supply​​0.5 MPA (71.1 psi)
• Required Air Volume  ​​360 L/min. (95 gal) / min

Tank Capacity
• Hydraulic Oil Tank Capacity​​20 L (5.3 gallons)
• Lubricant Tank Capacity​​1.8 L (.5 gallons)
• Coolant Tank Capacity​​550 L (145.3 gallons)
Machine Size
• Machine Height (PC-2)​​2565 mm (101.0") from floor
• Floor Space (PC-2)​​2541 x 4539 2pc
​​​​100” x 178.7”
• Mass of Machine + NC (PC-2S)​​9500 kg (20,900lbs.)
• Distance from Floor to Table Surface​​1069 mm (42.1")
