USED 2013 MAZAK QTS-250

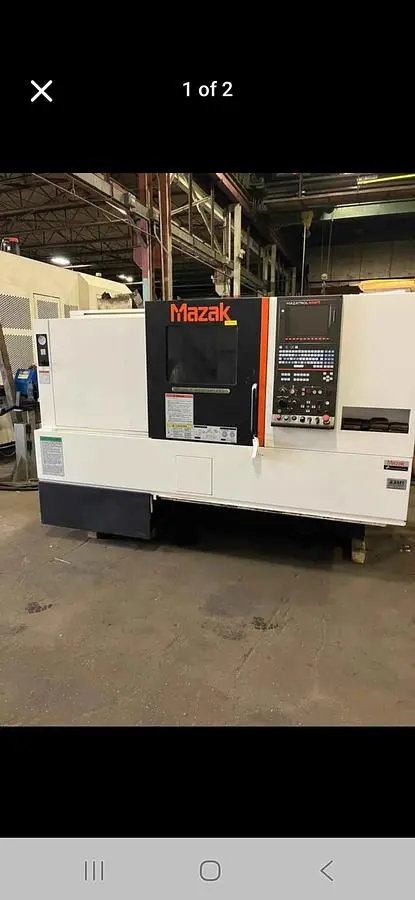

Mazak Quick Turn Smart QTS-250 CNC Turning Center 2013

All specifications are approximations and are subject to verification.
·         Equipped With:
·         Mazatrol Smart CNC Control
·         EIA-ISO Conversational programming
·         10″ Hydraulic Chuck (Capable)
·         A2-8, 4000 RPM Spindle
·         Tool Presetter
·         Hydraulic Tailstock and Quill
·         PCMCIA Card Interface
·         12 Station Automatic Turret
·         Foot Switch
·         High Pressure Coolant System
·         Chip conveyor
·         10GB Hard Disk
·         Specifications:
·         Capacity:
·         Max Turning Diameter: 13.78″
·         Max Turning Length: 18.73″
·         Max Bar Capacity: 3.0″
·         Swing Over Bed: 24.04″
·         Swing Over Carriage: ″
·         Distance Between Centers: 22.08”
·         Travels:
·         X Axis Travel: 8.76″
·         Z Axis Travel: 20.26″
·         Rapid Traverse X Axis: 1181 IPM
·         Rapid Traverse Z Axis: 1181 IPM
·         Spindle:
·         Spindle Nose: A2-8
·         Spindle Bore: 3.2″
·         Spindle Speed: 4000 RPM
·         Spindle Motor: 35 hp
·         Turret:
·         Turret Capacity: 12 Stations
·         Turret Index Time: 0.15 Second
·         Tool Size: 2″
·         Tailstock:
·         Tailstock Taper: MT-4
·         Tailstock Body Travel: 20.65″
·         Tailstock Quill Dia.: 3.7″
·         Tailstock Quill Travel: 3.7″
·         General:
·         Power: 55 kva, 220v / 3-Phase
·         Overall Dimensions: 120″ x 87″ x 90″ High
·         Weight: 11,000 lbs
