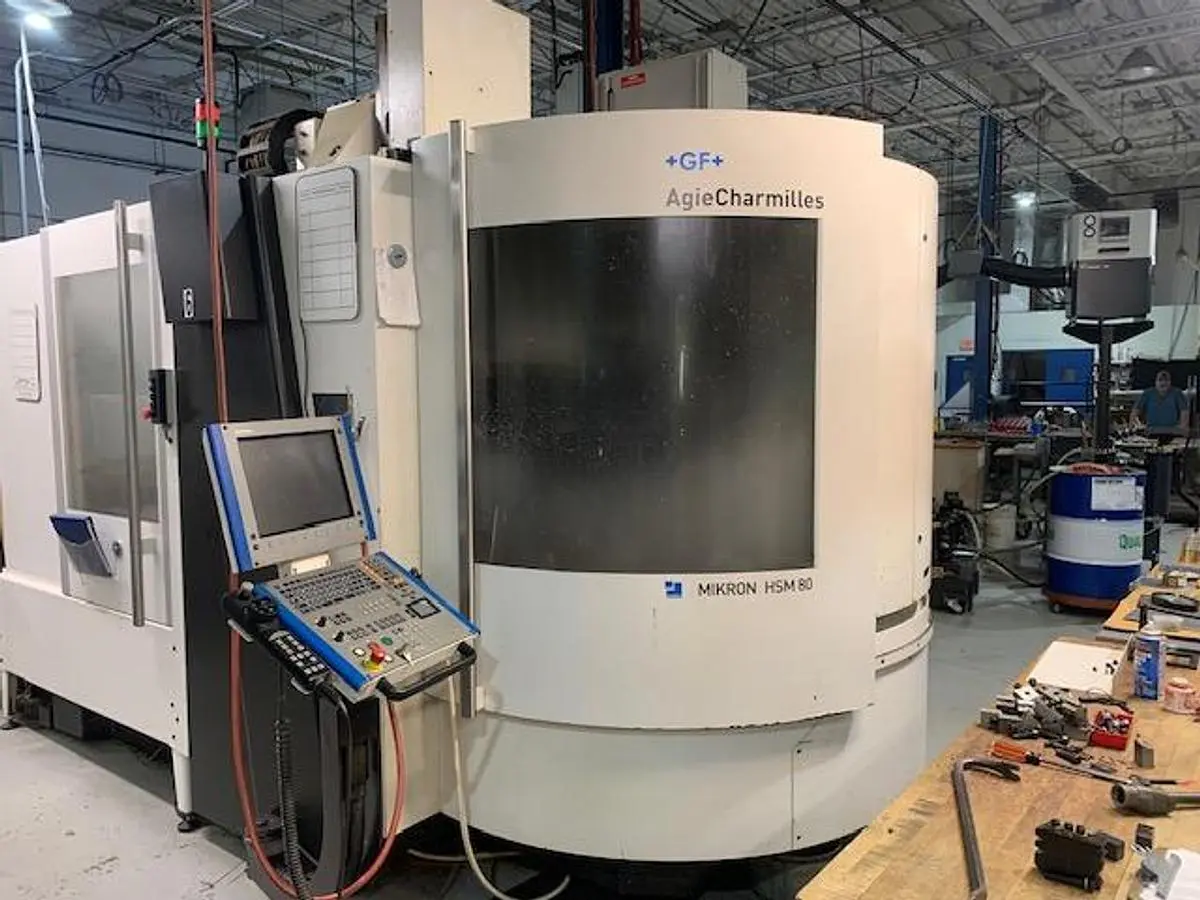

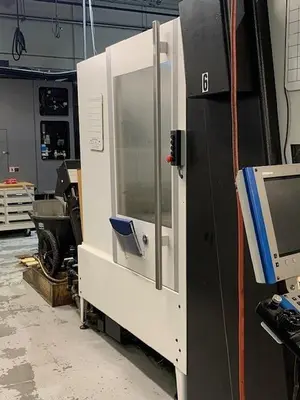

USED 2008 MIKRON HSM 800

The 2008 Mikron HSM 800 is a used vertical machining center featuring a Heidenhain iTNC 530 control system with 4 axes for complex machining tasks. It accommodates a table size of 31.49" x 23.6" with a capacity of up to 2,200 pounds. The machine offers an X-axis travel of 31.49", Y-axis travel of 23.6", and a Z-axis travel of 19.68". Rapid traverse rates for all axes are 1,572 ipm, ensuring swift movement and efficient processing.

Powered by a 41 hp motor, this model supports a spindle speed of up to 36,000 rpm and is equipped with an HSK 50 spindle taper. Its tool changer can hold up to 30 tools, and the system includes a coolant-through spindle feature to enhance cutting performance and tool life. With dimensions approximately 153" x 101" x 98" and a weight of 24,000 pounds, the HSM 800 is a robust machine built for demanding operational needs.

This industrial equipment is suitable for high-precision applications, offering reliable performance across various manufacturing environments. Ideal for businesses seeking to maintain rigorous production standards while ensuring efficiency and result-oriented operations.
Mikron HSM 800 - Vertical Machining Centers 2008

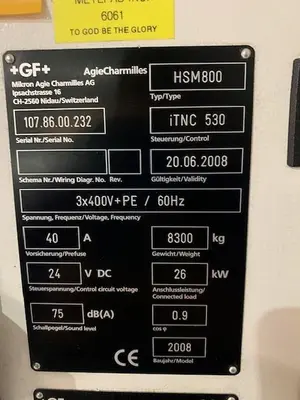

S/N 107.86.00.232

Control Type

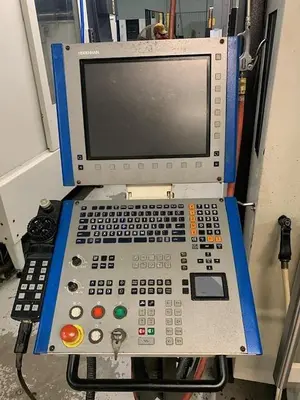

Heidenhain iTNC 530
# Axis
4
Table Size
31.49" x 23.6"
Table Capacity
2,200 pounds
X-Axis Travel
31.49"
Y-Axis Travel
23.6"
Z-Axis Travel
19.68"
Rapid Traverse Rate (X/Y/Z)
1,572 ipm
Spindle Taper
HSK 50
Spindle Speed
36,000 rpm
Main Motor
41 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Machine Dimensions
153" x 101" x 98" Approx.
Machine Weight
24,000 pounds
