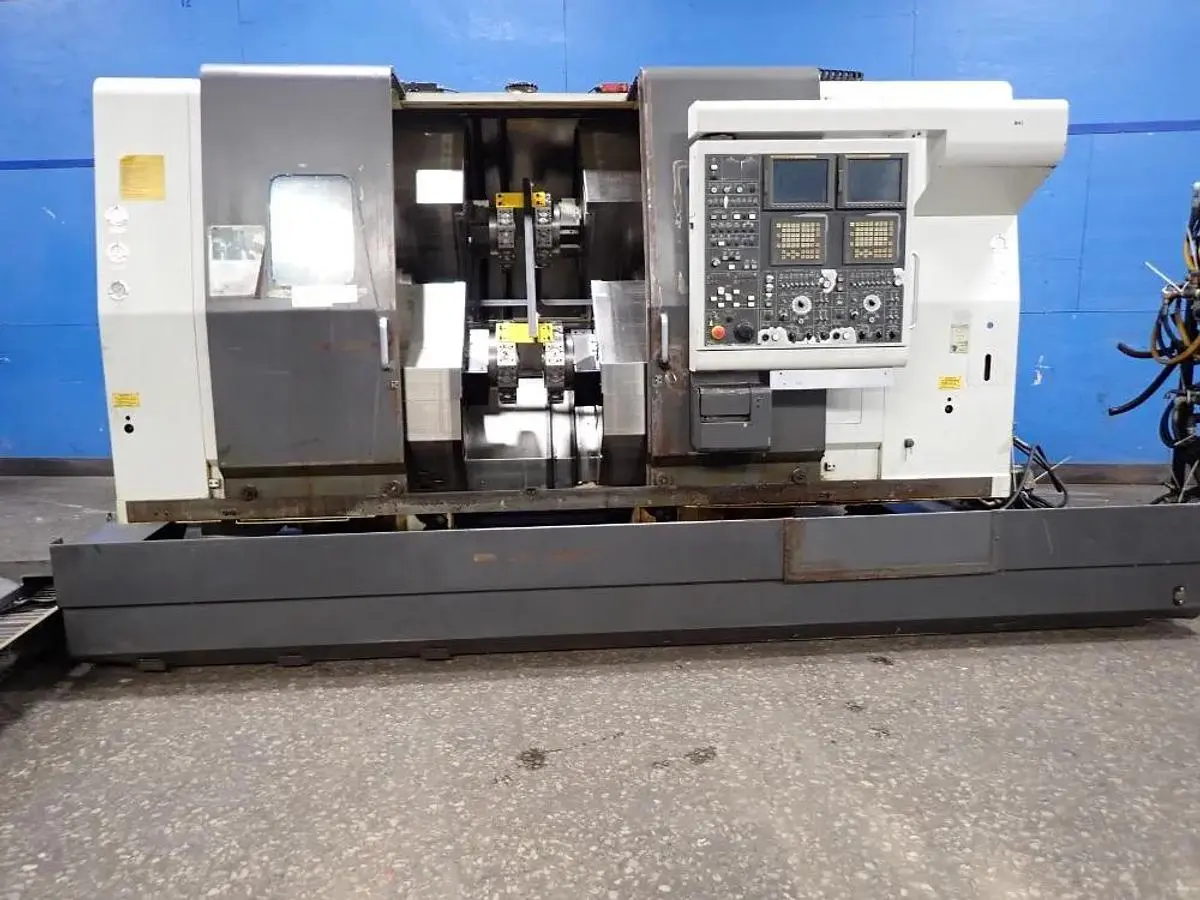

USED 2004 NAKAMURA-TOME WT-150MMY

Nakamura-Tome WT-150-II (MMY) Multi-Axis CNC Turning Center Lathe
Year of Mfg. 2004
S/N W151201
# Axis   7
Chuck Size          6"
Bar Capacity      2"
Power  15 hp
Max RPM            4,000 RPM
Turning Dia        12"
Machining Length           42"
Dimensions       152" x 92" x 98"
Weight 23,000

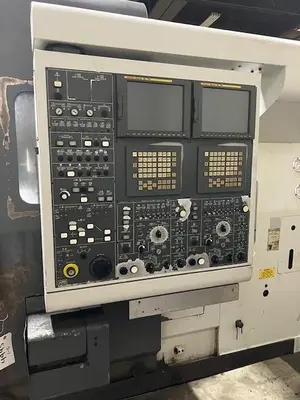

Control CNC (Fanuc 18iTB)

SPEC SHEET
20HP spindle motor L/R, 5000rpm Left Spindle - 5000rpm Right Spindle
2" Bar Capacity (L/R) Spindle

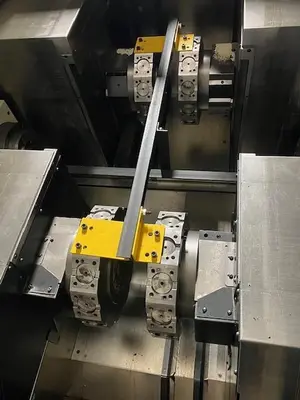

Two Upper 12 Station Bolt-on Turrets/One Lower 12 Station Bolt-on Turret
Full "C" Axis Milling Unit each spindle - Includes:5HP Motor for Milling on
12 Milling Stations (Two Upper and One Lower Turret)
60-6,000 RPM Rotating Tool Speed
Parts Catcher - 2" Dia. X 6" Long Capacity
NOTE: for Catching Parts from Right Spindle
Y-Axis - Only for both Upper Turrets L/R: Y Axis Stroke (30mm) +/- 1.18",
1.34 HP Feed Motor
Spindle Air Blow ( R ) Spindle
Fixed Air Blow L/R
Spindle Speed Override
Polygon Turning, NT Nurse, Rigid Tapping all Standard
Leveling Jig
