USED 2008 MORI SEIKI NL2500SY/700
Overview
Description

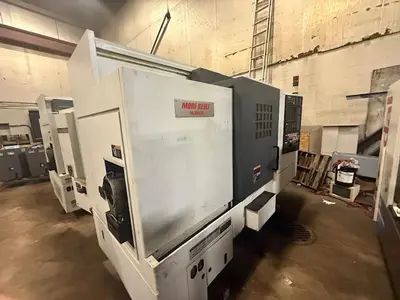

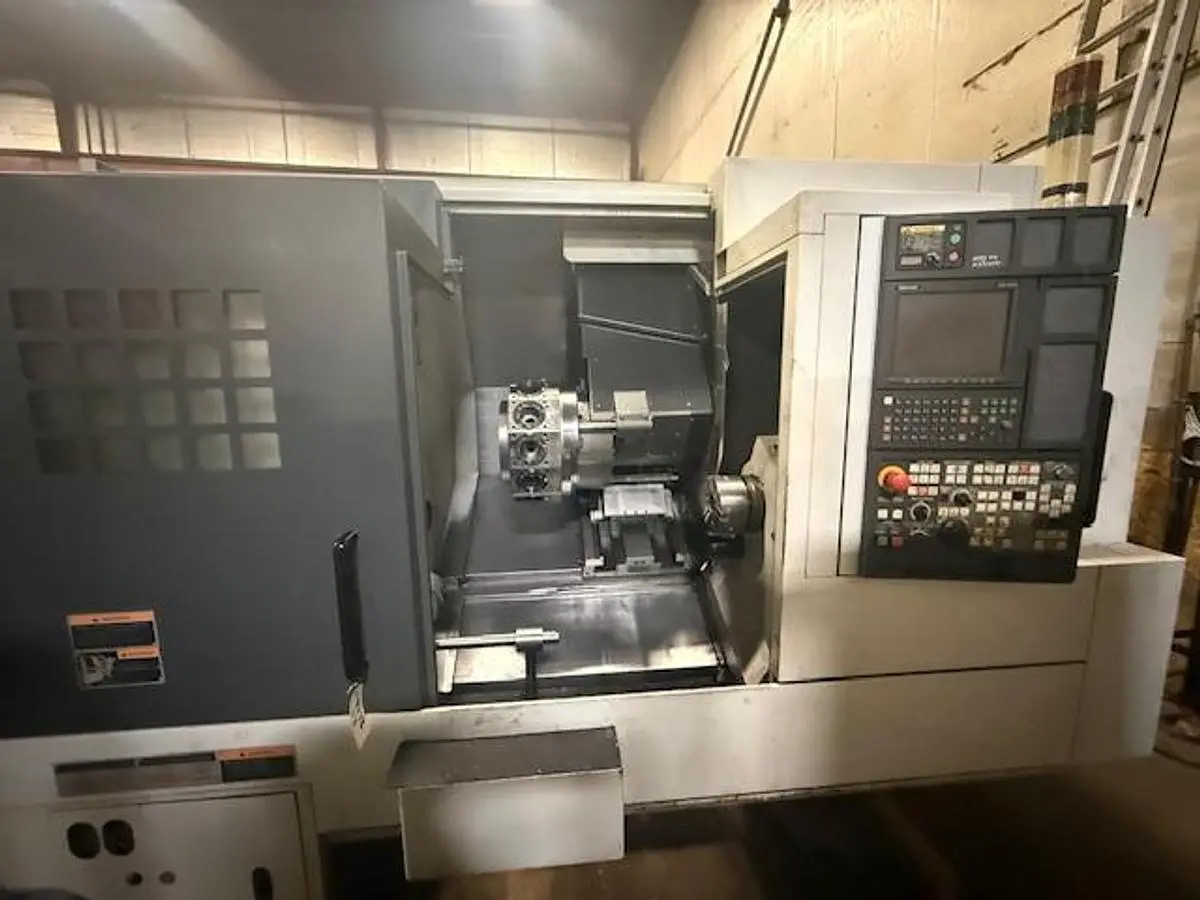

MORI SEIKI NL2500SY/700 CNC Lathe, 2008 – Sub Spindle, Y Axis, Live Tooling

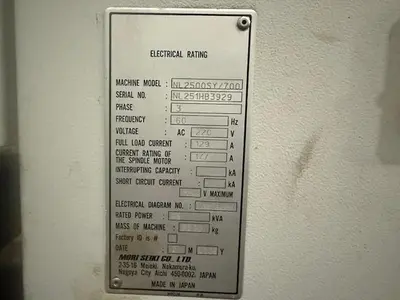

Serial # NL251HB3929
Type of CNC Control: MSX-850
Swing Over Bed: 22.83"
Max Distance Between Spindle Nose Surfaces: 37.83"
Max Turning Diameter: 14.02"
Standard Turning Diameter: 10.83"
Max Turning Length: 27.76"
Bar Capacity: 3.15"
X-Axis Travel: 10.24"
Y-Axis Travel: -1.67, +1.67"
Z-Axis Travel: 31.30"
Spindle 2 B-Axis Travel: 28.90"
SPINDLE 1
Spindle Speed Range: 4000 RPM
2 Speed Spindle Ranges
Spindle Nose: JIS A2-8
Through Spindle Hole Diameter: 3.58"
Min. Spindle Indexing Angle: 0.001

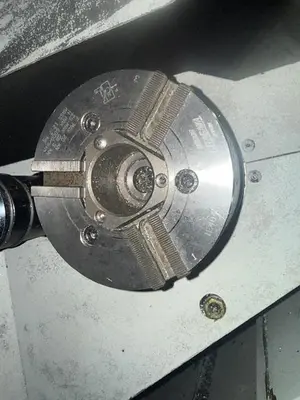

Chucks: Collet (10" Solid & Hollow Capable)
Drive Motor: 26/22 H.P.
SPINDLE 2
Spindle Speed Range: 6000 RPM
1 Spindle Speed Range
Spindle Nose: JIS A2-5
Through Spindle Hole Diameter: 1.69"
Min. Spindle Indexing: 0.001
Chuck: Collet (6" Solid & Hollow Capable)
Turret: 12 Tool (10)
Turret Rotary Tool Spindle Rate: 6000 (10,000)
Spindle 2 Drive Motor: 14.74/10.05 H.P.
Rotary Tool Drive Motor: 7.37/4.96 H.P.
Equipped With:
main spindle chuck BB10”, sub spindle BB206, coolant tank with pump, chip conveyor, leveling pads
