USED 2004 DAEWOO LYNX 210

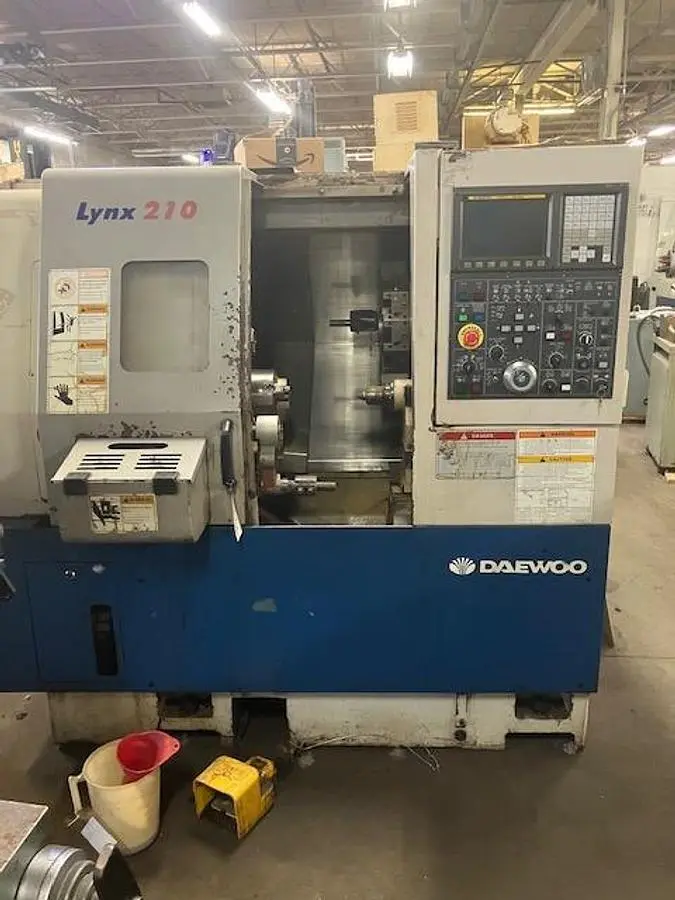

Daewoo Lynx  210 Cnc Lathe 2004

Equipped With:

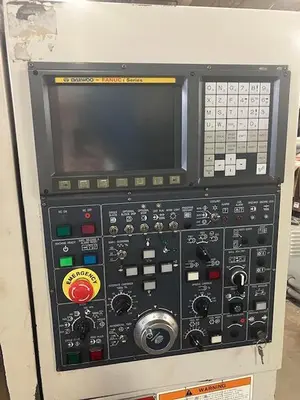

Fanuc i- series CNC Control
Rigid Tapping

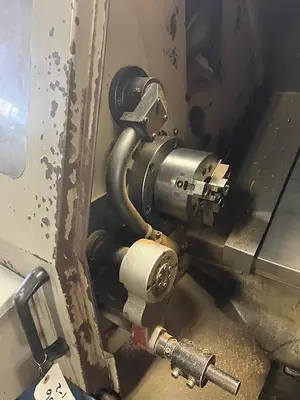

6″ 3 Jaw Hydraulic Chuck
A2-5 Spindle Nose
Tool Presetter
Parts Catcher
Hydraulic Tailstock and Quill
PCMCIA Card Slot
RS-232 & LAN connectivity
Coolant System
12 Station Automatic Turret
Foot Switch
Turbo Chip Conveyor
Manuals
Daewoo Lynx 210 Specifications:
Capacity:
Max Turning Diameter: 11.0″
Max Turning Length: 11.8″
Max Bar Capacity: 1.75″
Swing Over Bed: 18.0″
Distance Between Centers: 20.0”
Travel:
X Axis Travel: 6.3″
Z Axis Travel: 13.0″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.0″
Spindle Speed: 35 – 5000 RPM
Spindle Motor: 15hp
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock:
Tailstock Taper: MT-3
Tailstock  Quill Dia.: 2.97″
Tailstock Quill Travel: 3.15″
General:

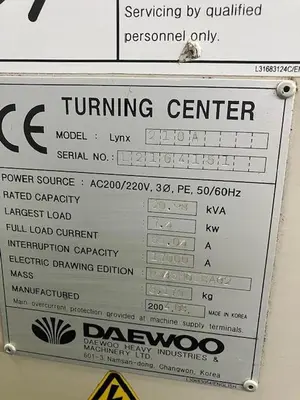

Power: 35 kva, 220v / 3-Phase
Overall Dimensions: 160″ x 77″ x 80″ High with Chip Conveyor
Weight: 7600 lbs
