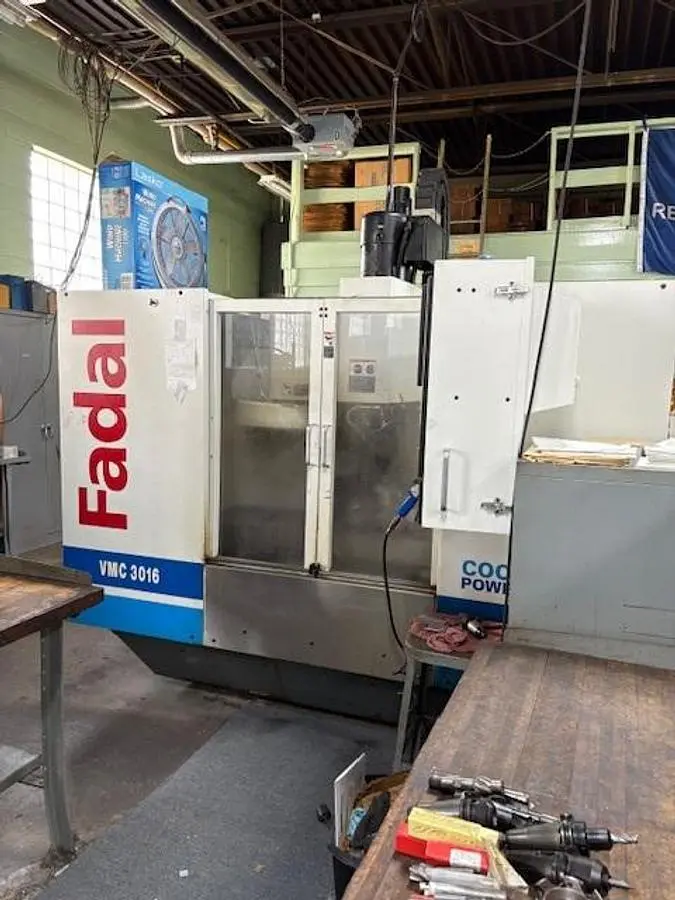

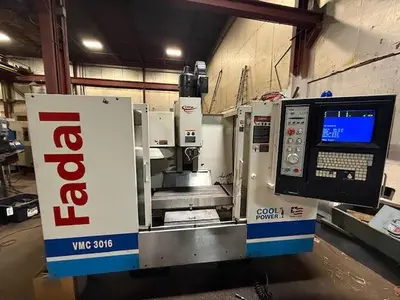

USED 2002 FADAL VMC-3016HT

FADAL VMC-3016HT CNC VERTICAL MACHINING CENTER NEW:2002
S/N 03200284550

SPECIFICATIONS:

TABLE SIZE: 39"X16"
TRAVELS:
X-AXIS: 30"
Y-AXIS: 16"
Z-AXIS: 20"
MAX WEIGHT ON TABLE: 2736 LBS
SPINDLE NOSE TO TABLE: 4"-24" (OPT. 4"-32")
SPINDLE TAPER: CAT #40
TOOL HOLDERS: 21 ATC BI-DIRECTIONAL
MAIN MOTOR: 22.1 HP

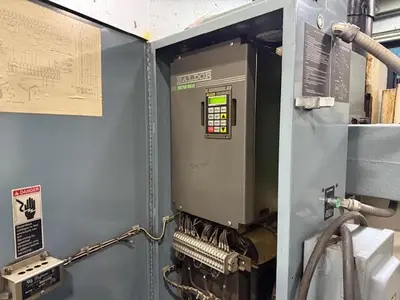

SPINDLE DRIVE MOTOR: AC VECTOR DRIVE
SPINDLE SPEED : 8,000 RPM
CUTTING FEED RATE(X,Y,Z): 800 IPM
RAPID TRAVEL(X/Y/Z): 1000 IPM
AXIS POSITIONING: +/- .0002"
AXIS REPEATABILITY: +/- .0001"

EQUIPPED WITH:

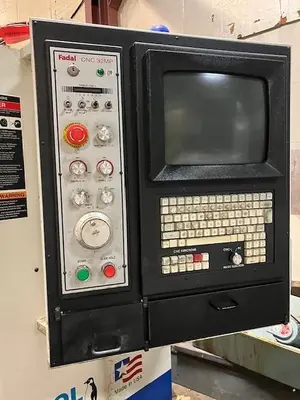

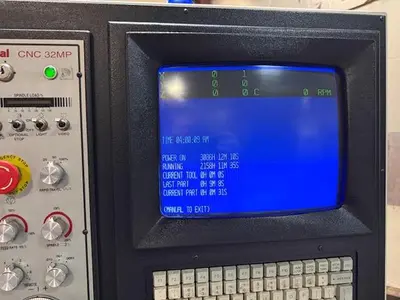

Fadal CNC CONTROL
Rigid tapping
Coolant tank
