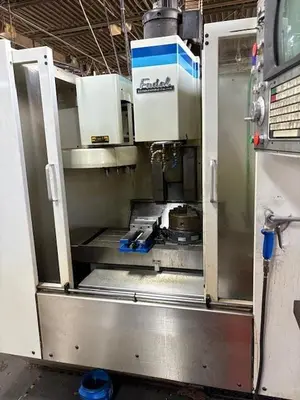

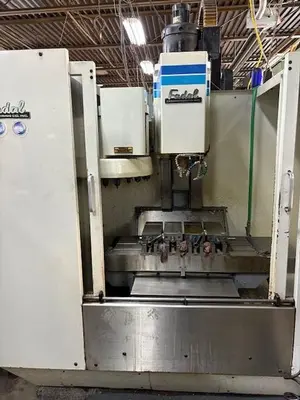

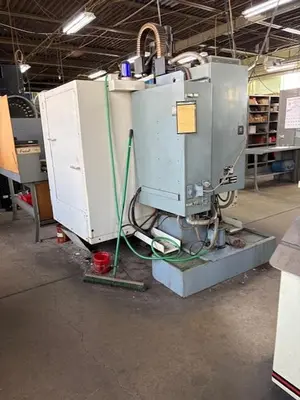

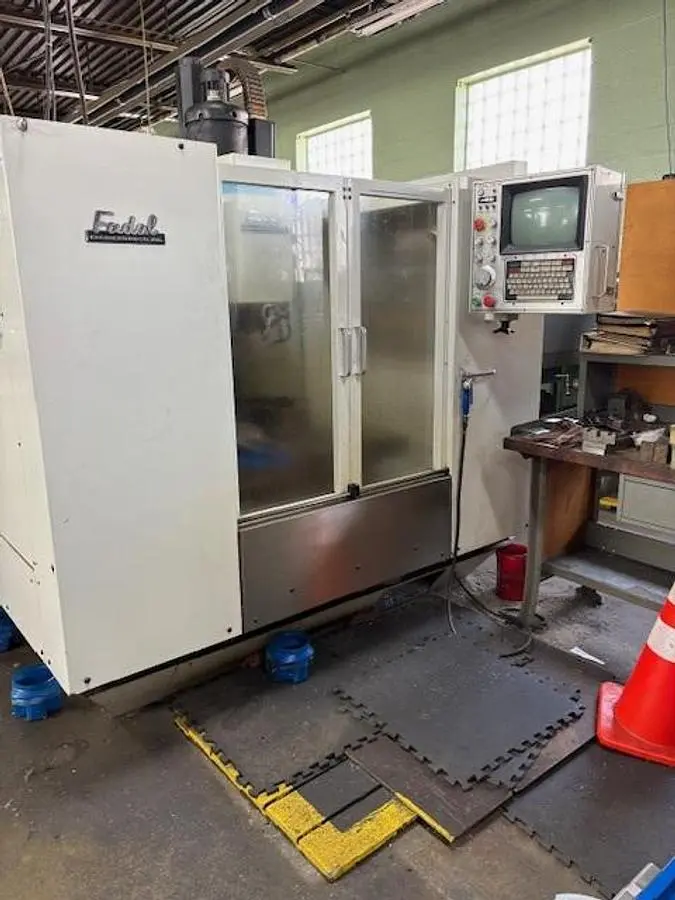

USED 1988 FADAL VMC-40

The 1988 Fadal VMC-40 Vertical Machining Center is a well-maintained used piece of equipment featuring a 22" X-axis, 16" Y-axis, and 20" Z-axis travel. It efficiently handles rapid feed rates of 400 inches per minute across all axes and offers a spindle-to-table distance ranging from 4" to 24". Its sturdy table supports a maximum weight of 750 pounds, and it employs a 21-position random automatic tool changer for versatility in tooling options.

This machine is equipped with an updated FADAL CNC 88hs control system for improved performance. It requires 230V, 3-phase, 60Hz power supply with a full load current of 40 amps. The VMC-40 includes features like a CAT 40 spindle taper, full enclosure for safety, and a coolant tank for enhanced machining processes. It has a short circuit interrupting capacity of 200 kA, ensuring reliable operation.

Ideal for various machining tasks, the 1988 Fadal VMC-40 combines robust functionality with precise control. It remains a competitive choice for those seeking a reliable and efficient vertical machining center in a used condition.

FADAL VERTICAL MACHINING CENTER

MODEL: VMC 40 904-1
S/N: 8802122
YEAR: 1988
TRAVELS
22″ LONGITUDINAL (X AXIS)
16″ CROSS (Y AXIS)
20″ VERTICAL (Z AXIS)
400 IPM RAPID FEED RATE (X, Y, Z)
16″ SPINDLE CENTER TO COLUMN
4″ MIN. – 24″ MAX. SPINDLE TO TABLE
21 AUTOMATIC TOOL CHANGER
ATC, TOOL SELECTION – RANDOM
750 LBS. MAX WEIGHT ON TABLE

EQUIPPED WITH

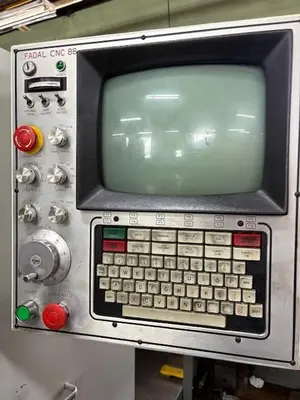

updated FADAL CNC 88hs CONTROL

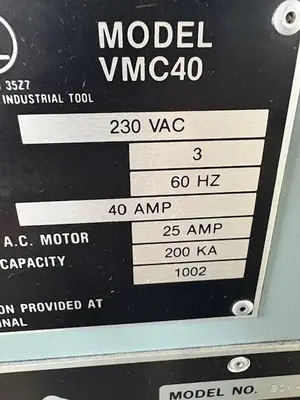

VOLTAGE 230 V / 3 PHASE / 60HZ / 40 AMP
FULL ENCLOSURE
COOLANT TANK
TOOL STATION: 21
CONTROL: CNC 88
SPINDLE TAPER: CAT 40
MOTOR: 230 VAC / 3 PHASE, 60 HZ
FULL LOAD CURRENT: 40 AMP
AMPERAGE RATING OF LARGEST AC MOTOR: 25 AMP
SHORT CIRCUIT INTERRUPTING CAPACITY: 200 KA
