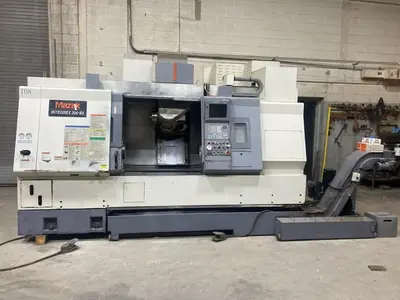

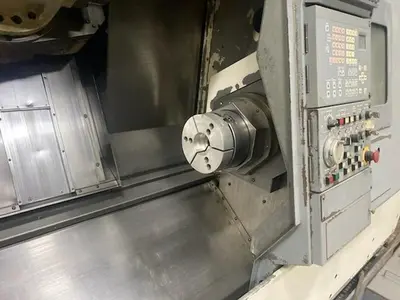

USED 2003 MAZAK INTEGREX 200-IIIS

The 2003 MAZAK Integrex 200-IIIS is a versatile CNC lathe renowned for its precision and advanced features, ideal for various complex machining tasks. This used machine incorporates a Mazatrol 640 MT Pro control system, enhancing its usability and efficiency. It features a 10" chuck, a substantial swing and turning diameter of 26", supplemented by an X-axis travel of 22.83", a Y-axis travel of 6.3", and a Z-axis travel of 41.14". Additionally, it has a B-axis tilt of 225° and a C-axis index with 0.001° precision.

Equipped with a main spindle running at up to 5,000 RPM and a powerful 30 HP motor, the machine also offers a sub spindle, providing additional versatility with speeds up to 5,000 RPM and 25/20 HP. The model includes live tooling with a spindle speed of 12,000 RPM for intricate milling tasks, supported by a 25 HP milling spindle motor. The ATC capacity includes 40 stations, optimizing tool management for various operations.

Essential features include a chip conveyor, a cohesive coolant system with a tank, coolant thru spindle capability, tool presetter, and spindle chillers. It's equipped with Kitagawa B210 on the main spindle and B208 on the sub spindle. The machine dimensions are 151" x 93" x 103", and it weighs approximately 21,120 pounds, making it a robust addition to any industrial setup.

Mazak Integrex 200-IIIS - Horizontal Lathe 2003

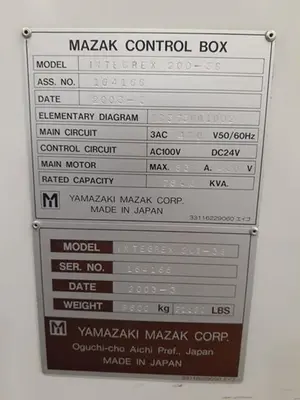

S/N 164166
Control Type

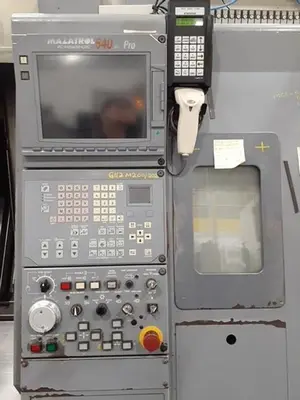

Mazatrol 640 MT Pro
Chuck Size
10"
Swing
26"
Turning Diameter
26"
Turning Diameter Lower Turret
10.6"
Center Distance
40"
X-Axis Travel
22.83"
Y Axis Travel
6.3"
Z-Axis Travel
41.14"
B Axis Head Tilt
225°
C Axis Index
0.001°
W Axis Travel
41.34"
Rapid Traverse (XZ/Y/W)
1,496/1,024/1,181 ipm
Spindle Nose
A2-6
Spindle Speed (RPM)
5,000
Main Motor
30 HP
Sub Spindle
yes
Sub Spindle Speed
5,000 RPM
Sub Spindle Motor (HP)
25/20 HP
Live Tooling
yes
Live Tooling Spindle Taper
KM63
Live Tooling Speed
12,000 RPM - Milling Spindle
Live Tooling Motor
25 HP
Tailstock
no
Y Axis
yes
ATC Capacity
40 stations
Dimensions
151" x 93" x 103"
Weight
21,120 pounds

EQUIPPED WITH:
- Mazatrol 640MT Pro CNC Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Coolant Thru Spindle
- Spindle Chillers
- Live Milling Spindle
- Sub Spindle
- Y Axis
- Kitagawa B210 (main spindle)
- Kitagawa B208 (sub spindle)
