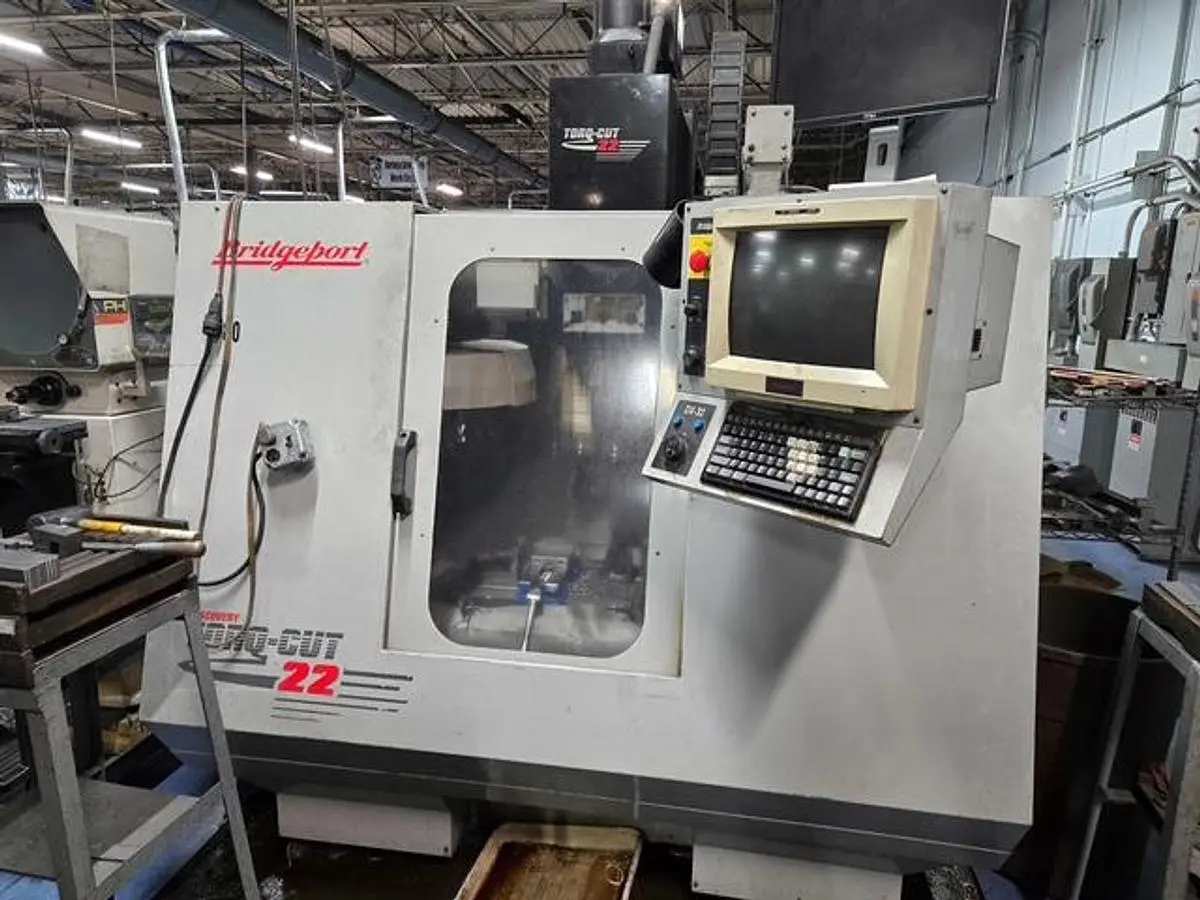

USED 1996 BRIDGEPORT TORQ CUT 22

BRIDGEPORT TORQ CUT 22 VERTICAL MACHINING CENTER
1996
S/N TC/22-363

Specification      Description
TABLE SIZE          32" x 16"
SPINDLE NOSE TO TABLE TOP      4.33" TO 24.33"
X-AXIS TRAVEL  22"
Y-AXIS TRAVEL   16"
Z-AXIS TRAVEL   20"
AUTOMATIC TOOLCHANGER      22 POSITIONS
THROAT DEPTH 17.7"
SPINDLE TAPER BT-40
SPINDLE SPEEDS (2 GEAR RANGES)           6,000 RPM
X AXIS RAPID TRAVERSE RATE     472 IPM
Y AXIS RAPID TRAVERSE RATE      472 IPM
MAIN MOTOR   7.5 HP
DIMENSIONS     79" x 79" x 96"
WEIGHT               6,500 LBS.
ELECTRICS           208 V / 60 HZ

Equipped With:
DX-32 PC BASED CONTROL WITH COLOR CRT
LINEAR GUIDEWAY CONSTRUCTION
FULL ENCLOSURE WITH FLOOD COOLANT & HALOGEN WORKLIGHT
BT-40 SPINDLE AND TOOL CAROUSEL
