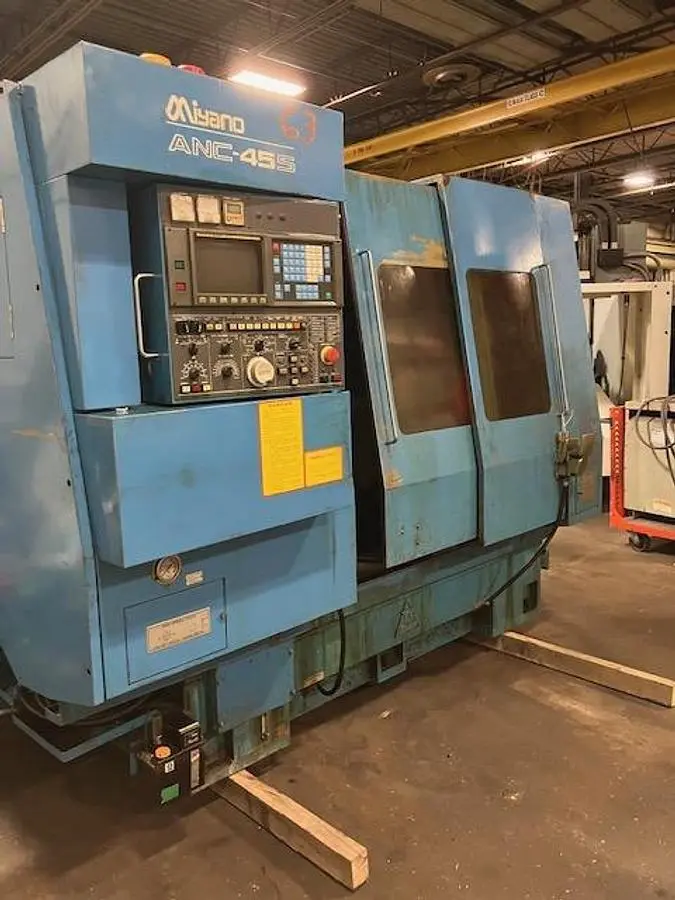

USED 1992 MIYANO ANC-45S

MIYANO ANC-45S CNC 5-Axis CNC Turning Center
Age 1992

Max. Swing ..................................... 23.62
Max. Work Length .......................... 15

MAIN SPINDLE:
Bar Capacity .................................. 1.75
Spindle Speeds ............................. 40-4000 RPM
Spindle Motor ................................. 15 HP AC
Spindle Nose .................................. A2-6

" Sub-Spindle
Bar Capacity .................................. 1.62
Spindle Speeds ............................. 40-4000 RPM
Sub-Spindle Motor ........................ 5 HP AC
Sub-Spindle Nose ......................... A2-5
B-Axis Stroke ................................. 17.32
Sifting Slide .................................... 5.118

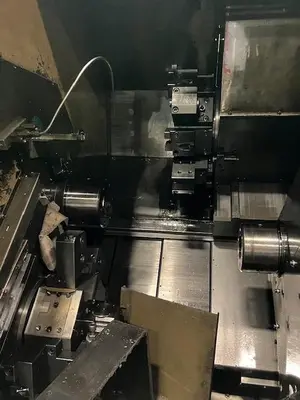

UPPER TURRET:
Tool Stations .................................. 12
X-Axis Slide Stroke ....................... 6.299
Z-Axis Slide Stroke ........................ 17.913
Rapid Traverse, X/Z ....................... 394 IPM / 472 IPM

LOWER TURRET:
Tool Stations ................................... 8
X-Axis Slide Stroke ........................ 5.52
Z-Axis Slide Stroke ........................ 7.874
Rapid Traverse, X & Z ................... 394 IPM

EQUIPPED WITH:

        12 Station Upper Turret – 6 Live Stations – 5 Deg. Increments (No C-Axis)
        8 Station Lower Turrent – 4 Live Stations - 5 Deg. Increments (No C-Axis)
        2” Front Collet Chuck (Main Spindle)
        1-5/8” Collet Chuck (Lower Spinde)
        2 High Pressure Coolant Pumps
        Live Tooling
        Manuals

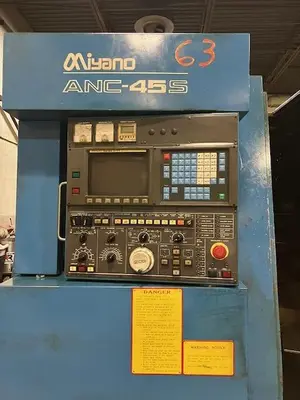

        Control for machine is FANUC OTT
