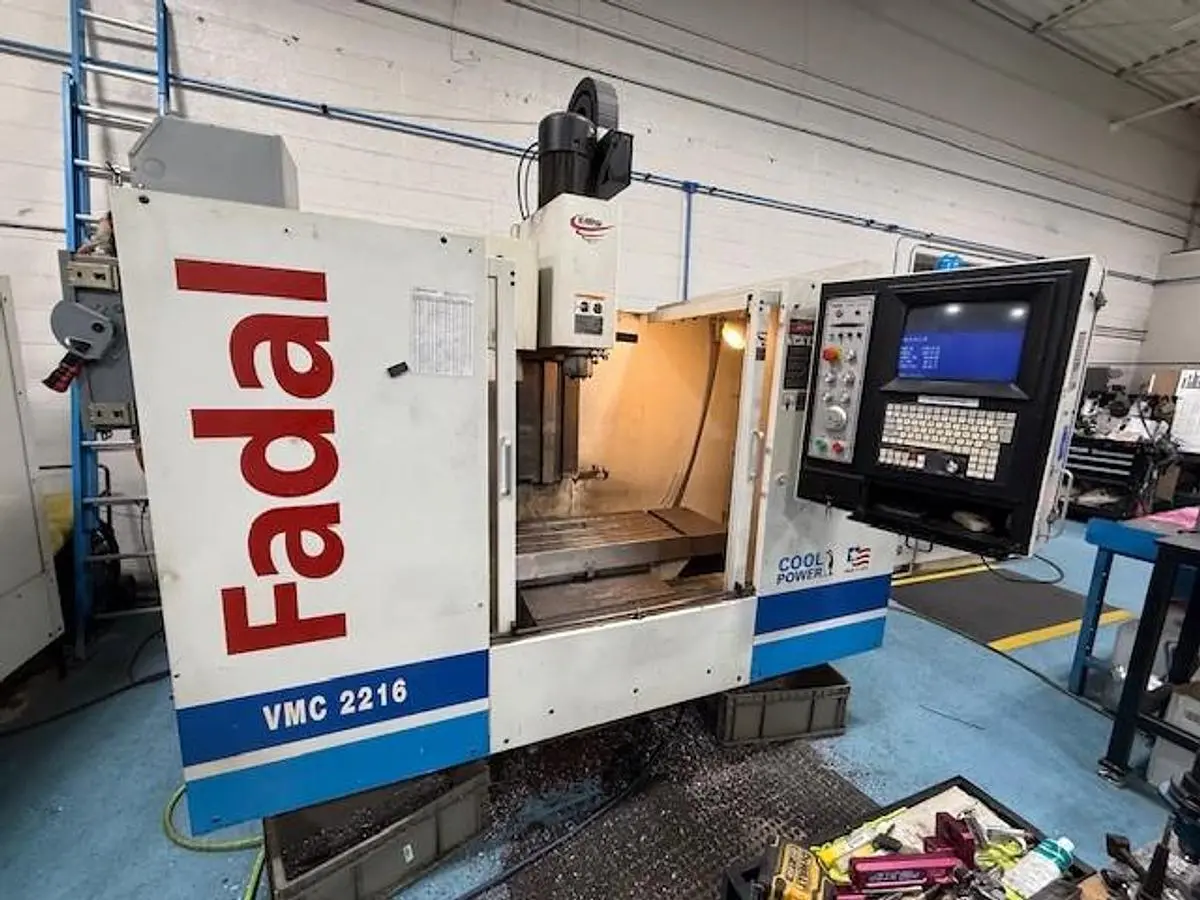

USED 2003 FADAL VMC-2216HT

The 2003 Fadal VMC-2216HT is a reliable vertical machining center suitable for various manufacturing applications. This used model offers a table size of 39" x 16" and supports a maximum table weight of 750 lbs, providing ample space and capacity for different workpieces. The machine delivers precise movements with its 22" X-axis, 16" Y-axis, and 28" Z-axis travel, enabling complex machining operations.

Powered by a 15 HP spindle motor, the VMC-2216HT reaches speeds up to 10,000 RPM, using a CAT-40 spindle taper for versatile tool compatibility. The built-in umbrella style tool changer offers a 21-tool capacity, promoting efficiency and reducing downtime. The Fadal CNC32MP control enhances usability with its memory expansion option to 422k, enabling advanced programming capabilities.

Weighing 8,100 lbs and measuring 98" x 77" x 103", the machine requires a considerable footprint but promises stability during operation. This model is equipped with essential features for improving productivity and precision in machining tasks, making it a valuable addition for shops requiring dependable performance and flexibility.

FADAL 2216 VERTICAL MACHINING CENTER

S/N012003045226
Year 2003

Specification      Description
TABLE SIZE          39" X 16"
MAX TABLE WEIGHT       750 LBS
X-AXIS TRAVEL  22"
Y-AXIS TRAVEL  16"
Z-AXIS TRAVEL  28”
SPINDLE SPEED 10,000 RPM
SPINDLE MOTOR              15 HP
SPINDLE TAPER CAT-40
TOOL CHANGER ( UMBRELLA )   21 ATC
MACHINE WEIGHT          8,100 LBS
MACHINE DIMENSIONS                98" X 77" X 103"

Equipped With:

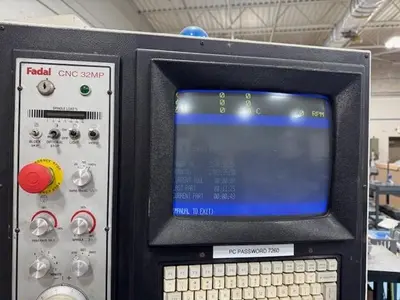

FADAL CNC32MP CNC CONTROL
28" z axis
memory expansion to 422k
