USED 1998 HWACHEON HI-ECO 10

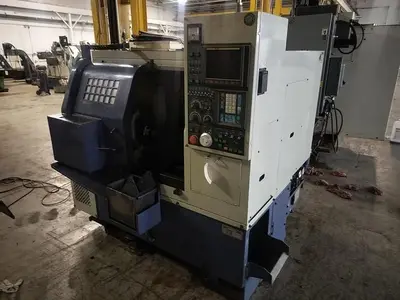

Hwacheon HI-ECO 10 CNC Turning Center 1998
·         serial no.mo8534601 f c
·         General:
·         Power: 220v / 3-Phase
·         Overall Dimensions: 69″ x 56″ x 67″ High
·         Weight: 5000 lbs
·         HWACHEON HI-ECO 10 Specifications:
·         Capacity:
·         Max Turning Diameter: 8.7″
·         Max Turning Length: 16″
·         Max Bar Capacity: 2.0″
·         Swing Over Bed: 15.7″
·         X Axis Travel: 5.1″
·         Z Axis Travel: 17.5″
·         Rapid Traverse X Axis: 630 IPM
·         Rapid Traverse Z Axis: 787 IPM
·         Spindle Nose: A2-6
·         Spindle Bore: 2.4″
·         Spindle Speed: 0 – 4000 RPM
·         Spindle Motor: 15 HP
·         Turret Capacity: 10 Stations
·         Turret Index Time: 1 Second
·
·         HWACHEON HI-ECO 10 Equipped With:
·         Fanuc OT CNC Control
·         collet chuck
·         A2-6 Spindle
·         Coolant System
·         Barfeed Interface
·         RS-232 ports
·         10 Station Automatic Turret
·

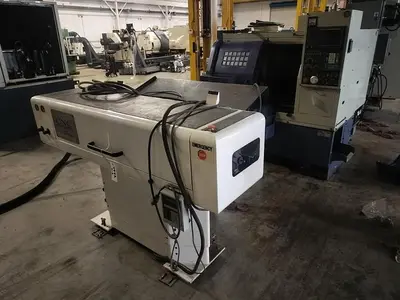

·         bar feeder
·         tool presetter
·         parts catcher
