USED 2005 MORI SEIKI NL2500SY/700

The 2005 Mori Seiki NL2500SY/700 is a used CNC lathe equipped for precision machining with capabilities for sub-spindle operations and live tooling. This model features the MSX-850 control system, offering reliable and advanced CNC operation. It has a swing over bed of 22.83 inches and a maximum turning length of 27.76 inches, providing substantial capacity for various machining tasks.

The lathe includes a robust spindle with a speed range of up to 4000 RPM, allowing for efficient and versatile cutting. The machine is equipped with a 12-tool turret and offers a live tooling capability with a rotary tool spindle rate of up to 6000 RPM. The bar capacity is 3.15 inches, and the machine is capable of indexing with a minimum angle of 0.001 degrees, ensuring precision in complex machining applications.

Additional equipment includes an LNS chip conveyor, coolant tank and pumps, and a tool pre-setter, enhancing operational efficiency. Collet chucks on both the main and sub spindles provide flexibility for various material handling needs. The Mori Seiki NL2500SY/700 is a comprehensive solution for advanced machining requirements.

MORI SEIKI NL2500SY/700 CNC Lathe, 2005 – Sub Spindle, Y Axis, Live Tooling

Serial # NL251EK1558
Type of CNC Control: MSX-850
Swing Over Bed:                                                    22.83"
Max Distance Between Spindle Nose Surfaces:    37.83"
Max Turning Diameter:                                         14.02"
Standard Turning Diameter:                                 10.83"
Max Turning Length:                                            27.76"
Bar Capacity:                                                          3.15"
X-Axis Travel:                                                        10.24"
Y-Axis Travel:                                              -1.67, +1.67"
Z-Axis Travel:                                                        31.30"
Spindle 2 B-Axis Travel:                                        28.90"
          SPINDLE 1
Spindle Speed Range:                                          4000 RPM
2 Speed Spindle Ranges
Spindle Nose:                                                      JIS A2-8
Through Spindle Hole Diameter:                            3.58"
Min. Spindle Indexing Angle:                                0.001

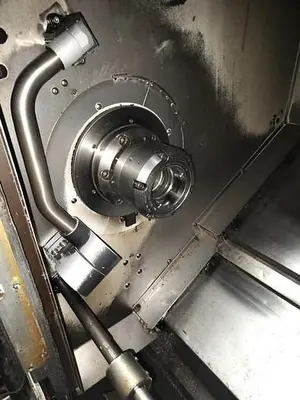

Chucks:                                                                 Collet (10" Solid & Hollow Capable)
Drive Motor:                                                        26/22 H.P.
           SPINDLE 2
Spindle Speed Range:                                          6000 RPM
1 Spindle Speed Range
Spindle Nose:                                                     JIS A2-5
Through Spindle Hole Diameter:                             1.69"
Min. Spindle Indexing:                                            0.001
Chuck:                                                                   Collet (6" Solid & Hollow Capable)

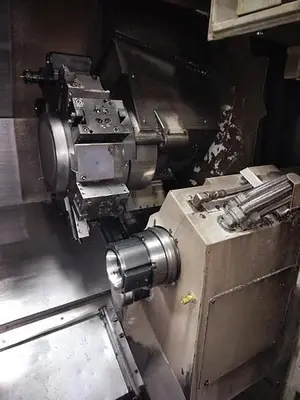

Turret:                                                                12 Tool (10)
Turret Rotary Tool Spindle Rate:                          6000 (10,000)
Spindle 2 Drive Motor:                                      14.74/10.05 H.P.
Rotary Tool Drive Motor:                                     7.37/4.96 H.P.

           Equipped With:

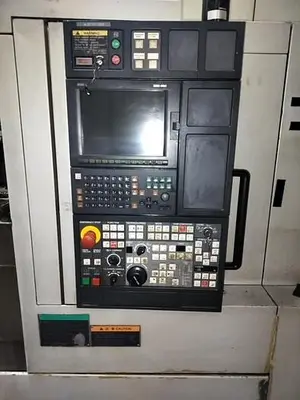

MSX-850 Control
LNS Chip Conveyor
Coolant Tank and Pumps
Tool Pre-setter
Collet Chucks Main & Sub Spindles
