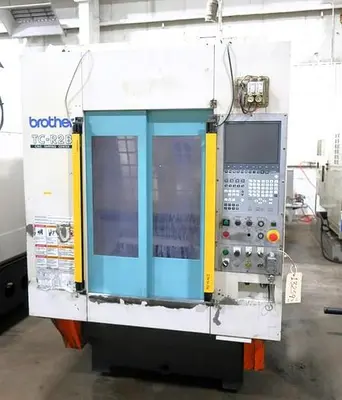

USED 2012 BROTHER TC-R2B

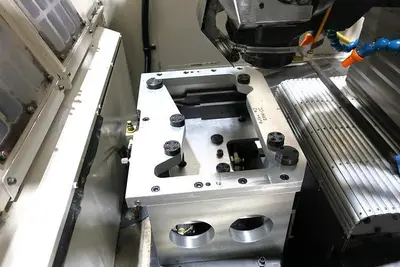

The 2012 BROTHER TC-R2B CNC Drill Tap Center is a reliable choice for precision machining. This used but well-maintained vertical machining center features a high-speed 10,000 RPM spindle designed for efficient operations. The machine is equipped with a 180-degree pallet changer that enhances productivity by minimizing downtime between operations. A 14-position turret and the CNC-B00 control system enable efficient tool management and precise control of the machining process.

With a table size of 23.6" x 16.5" and a capacity of 256 lbs on each side, the machine accommodates a variety of workpieces. The machine offers travel distances of 16.5" on the X-axis, 12.8" on the Y-axis, and 12" on the Z-axis, ensuring flexibility in handling different tasks. Rapid feed rates of 1969 inches per minute on all axes facilitate quick movements, optimizing machining cycle times. The cutting rates of 394 ipm on the X and Y axes and 787 ipm on the Z-axis demonstrate its efficiency in cutting operations.

Key features include a Spindle Taper of 30, driven by a robust 15 HP main motor, ensuring powerful yet precise machining. The machine also includes a coolant system, which helps maintain optimal cutting temperatures, thus extending tool life. Overall, the BROTHER TC-R2B is an ideal choice for businesses seeking a dependable, high-speed CNC machining solution.

2012 BROTHER TC-R2B CNC Drill Tap Center: 10,000 RPM spindle, 180° pallet changer, 14-pos turret, CNC-B00 control, coolant system. Used, well-maintained for precision machining.

Specifications
Table Size: 23.6" x 16.5" (each side)
Table Capacity: 256 lbs (one side)
Table Position Time: 2.9 S/180 deg.
X-Axis Travel: 16.5"
Y-Axis Travel: 12.8"
Z-Axis Travel: 12"
X-Axis Rapid Feedrate: 1969 ipm
Y-Axis Rapid Feedrate: 1969 ipm
Z-Axis Rapid Feedrate: 1969 ipm
Cutting Rate: 394 (X, Y) 787 (Z)
Spindle Speed: 10,000 IPM
Spindle Taper: 30
Main Motor: 15 HP

Equipped With

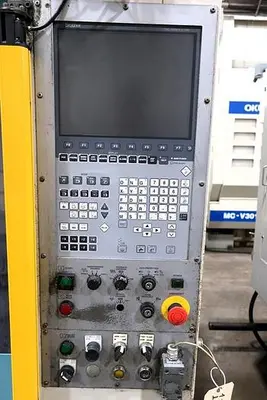

CNC-BOO CNC Control

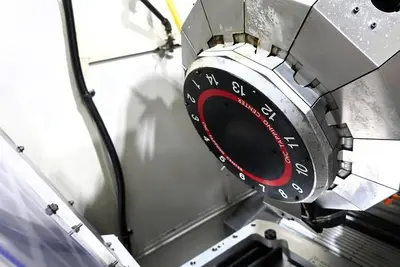

14 Position turret
180-degree pallet changer
Coolant system
10,000 RPM Spindle
