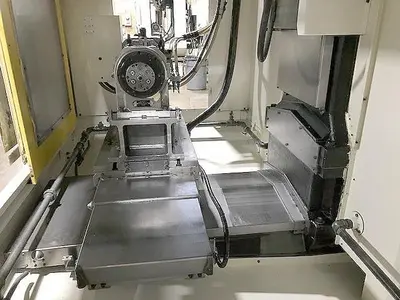

USED 2008 FANUC ROBODRILL ALPHA-T21IFL

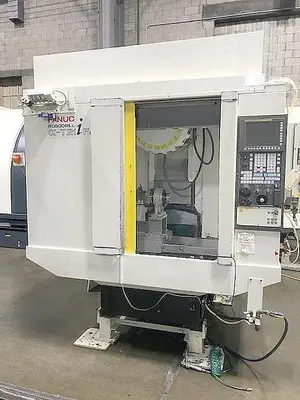

FANUC ROBODRILL ALPHA-T21IFL CNC VERTICAL MACHINING CENTER 2008
Specifications

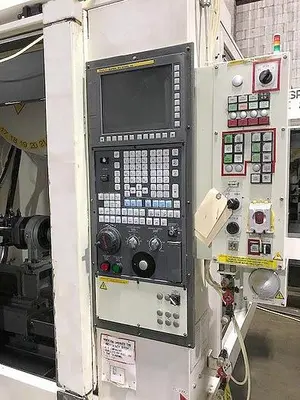

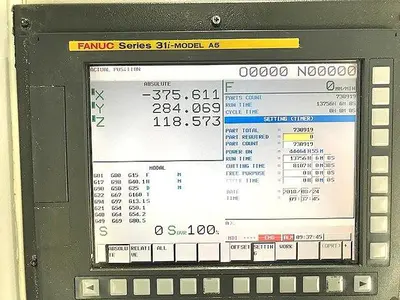

Type of CNC Control       Fanuc 31i CNC Control
# Axis   3
Table Working Surface  33.46" x 16.1"
Table Load Capacity       660 LBS
X-Axis (Longitudinal Travel)         27.55"
Y-Axis (Cross Travel)       15.74"
Z-Axis (Vertical Travel)  12.99"
Max Distance Spindle Nose to Table Top 29.75"
Max Distance Spindle Nose to Trunnion Center 16.25"
Feed Rates, All Axes       1,181 IPM
Rapid Traverse Rate, All Axes     2,125 IPM
Spindle Horsepower      14.5 HP
Max Spindle Speed        10,000 RPM
Max Spindle Speed For Tapping 8,000 RPM
Spindle Taper    BT-30
Torque, Up To   76 Nm
Automatic Tool Changer Capacity (ATC) 21
Tool Change Time           0.9 Sec Tool-to-Tool
Approximate Machine Dimensions          68" x 84"
Approximate Machine Height    116"
Approximate Machine Weight   5,500 LBS

Equipped With
*High Pressure Coolant Through Spindle

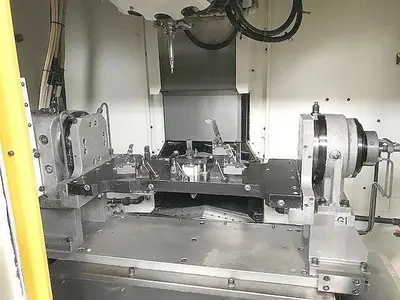

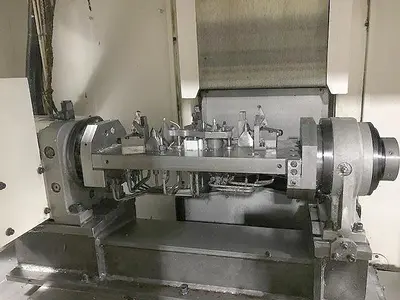

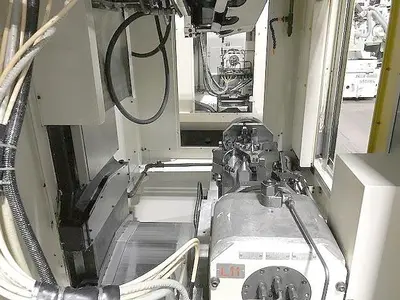

*Full 4th Axis Rotary table with Full Tail Support

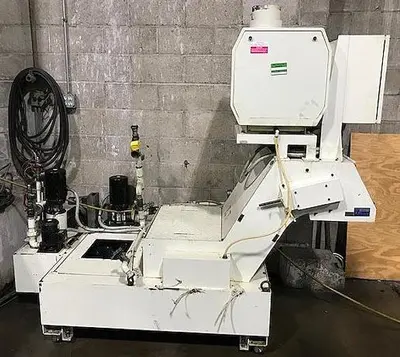

*Large Capacity Chip Tank and Fine Chip System
Fanuc 31i CNC Control, Multiple Part Program Storage, Rigid Tapping, 300mm (11.811") Column Riser, Trunnion Style 90 Degree Indexing A-Axis Auto Indexing Table, 21 Station Automatic Tool Changer, Hydraulic Part Clamping, High Pressure Through Spindle Coolant, Automatic Lubrication, Chip Flush, Automatic Door, Operator Door Safety Light Curtain, JPC Chip Conveyor/Coolant System with Mist Collector and "Built-in" Fines Filter.
