USED 2002 KITAKO MT2-200W

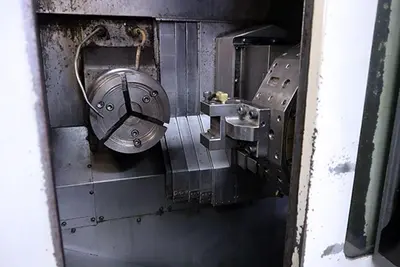

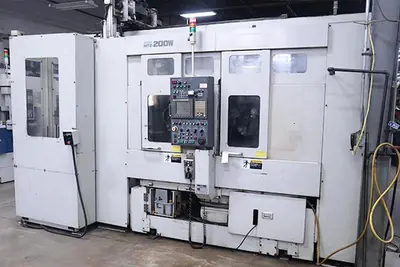

The 2002 Kitako MT2-200W is a robust two-spindle CNC horizontal turning center, ideal for various machining applications. It features a dual 8-inch chuck and can accommodate two 8-position tool turrets, providing versatility in tool handling. The machine is capable of a maximum turning diameter of 7.9 inches and a maximum turning length of 6.3 inches. Its axis travels are X=6.7 inches and Z=9.84 inches, with rapid traverse speeds reaching up to 1181 IPM in both X and Z directions.

The Kitako MT2-200W is driven by a powerful 20 HP motor, allowing spindle speeds up to 4,000 RPM, and is equipped with a robust spindle nose of type A2-6. The dimensions of the machine are 106 inches in length, 78 inches in width, and 85 inches in height, with a substantial weight of 17,500 pounds, which ensures stability during heavy operations. Control is handled via the reliable FANUC 18i-T control system, providing precision and ease of use.

Additional features include a chip conveyor for efficient waste management. With its serial number 76506, this machine promises reliability and precision in production environments. It is a suitable choice for manufacturers looking to enhance their machining operations with a dependable used CNC lathe.

Kitako MT2-200W 2-Spindle CNC Horizontal Turning Center (2002)
NUMBER OF SPINDLES (2)

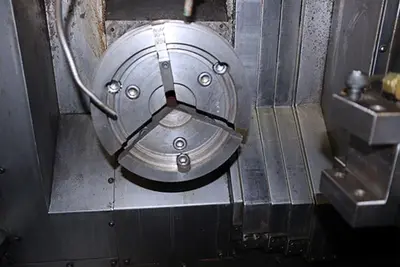

CHUCK SIZE 8"
(2) 8 POSITION TOOL TURRETS
MAX TURNING DIAMETER 7.9"
MAX TURNING LENGTH 6.3"
X=6.7"
Z=9.84"
RAPID X=1181 IPM
RAPID Z=1181 IPM
SPINDLE NOSE A2-6
4000 RPM
20 HP

DIMENSIONS 106" x 78" x 85"; WEIGHT 17,500 LBS

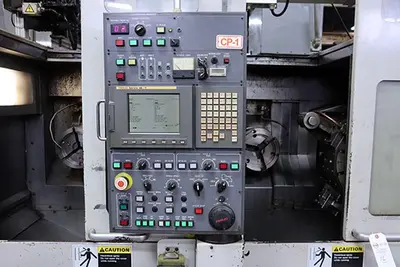

FANUC 18i-T CONTROL

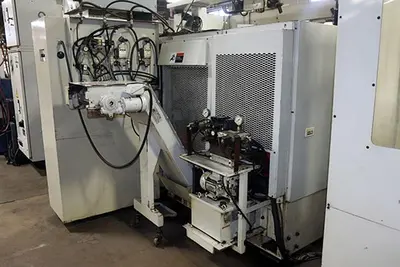

CHIP CONVEYOR

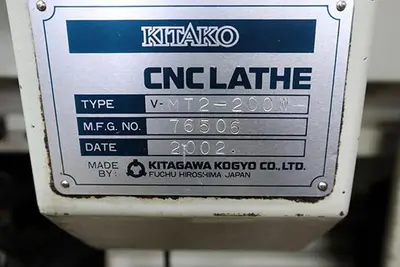

S/N 76506
